Theming • shiny.element

Element Plus is themed through CSS variables – --el-color-primary and some hundreds more – which its theming guide overrides on the page. Here el_theme() does it, alongside the Bootstrap theme of the page around the components. Languages, dark mode, sizes for the whole page and the built-in transitions have guides of their own.

Sizing

width is accepted by every component and behaves like the width of a Shiny input – "200px", "50%", or a number meaning pixels. It lands on Element’s own markup, because the host element carries display: contents and generates no box of its own.

height is only where Element Plus gives it a meaning: el_table() fixes the header and scrolls the body, el_slider() sizes a vertical track, el_carousel() sets the frame. Element Plus sizes controls through size ("large", "default", "small") rather than a height.

el_page(size = "small") sets that size for every component not given one of its own, as app.use(ElementPlus, { size: "small" }) does upstream; z_index sets where Element’s popups start stacking. use_element() takes both too. Element Plus’s responsive helper classes – hidden-xs-only, hidden-md-and-up and the rest of its display.css – are loaded with it, for any tag: tags$div(class = "hidden-sm-and-down", ...).

The page around the components

Element styles its components, not the page they sit on, and most of its components set no font of their own – they inherit the page’s. el_page() therefore themes the page too: its default, el_theme(), is a bslib theme carrying Element’s blue, greys, borders, corners, type size and font stack, so Shiny’s own inputs and outputs match the Element ones beside them.

el_row(
  gutter = 16,
  el_col(
    span = 12,
    textInput("shiny_text", "Shiny's textInput()", "Ada"),
    actionButton("shiny_go", "actionButton()", class = "btn-primary")
  ),
  el_col(
    span = 12,
    tags$label("Element's el_input()"),
    el_input("el_text", value = "Ada"),
    tags$div(
      style = "margin-top: 15px",
      el_button("el_go", "el_button()", type = "primary")
    )
  )
)

Shiny's textInput()

Element's el_input()

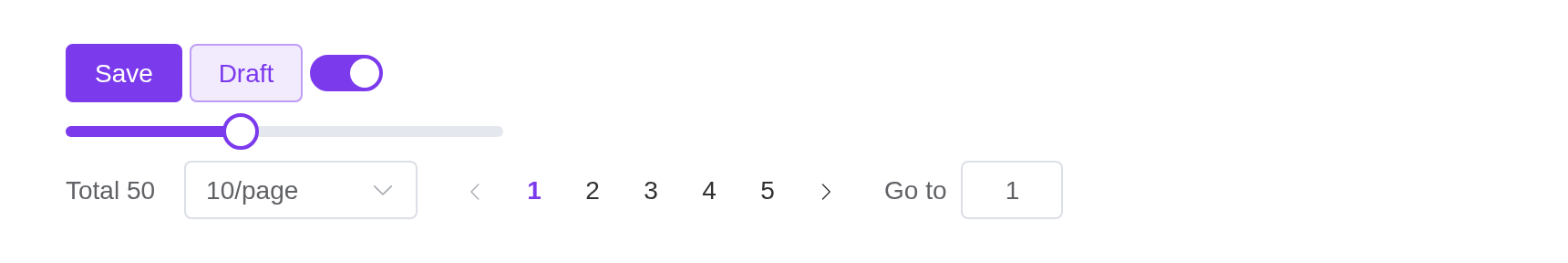

el_theme(primary = "#7c3aed") changes the brand colour, and any other argument of bslib::bs_theme() or Bootstrap variable can be overridden the same way. The theme’s primary, success, warning, danger and info reach Element’s components too, with the tints and shades Element derives from each – a plain button’s pale fill, a focused input’s border:

ui <- el_page(
  theme = el_theme(primary = "#7c3aed"),
  el_button("save", "Save", type = "primary"),
  el_button("draft", "Draft", type = "primary", plain = TRUE),
  el_switch("notify", value = TRUE),
  el_slider("level", value = 40, width = "240px"),
  el_pagination("pages", total = 50)
)

shinyApp(ui, function(input, output, session) {})

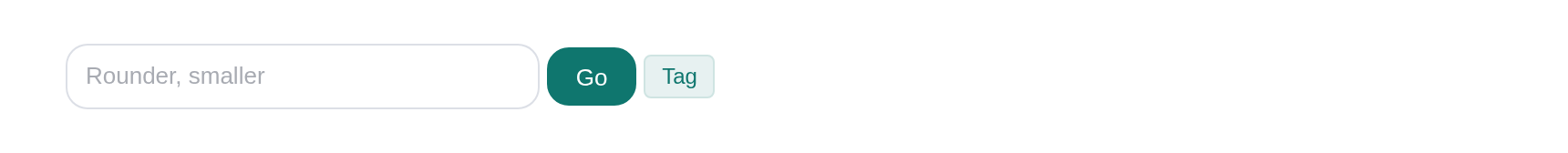

Element Plus’s other variables – its radii, sizes, greys, the full list in its theme-chalk stylesheet – go in el_theme(element =), by name without the --el-:

theme <- el_theme(
  primary = "#0f766e",
  element = list(
    "border-radius-base" = "12px",
    "border-radius-small" = "8px",
    "font-size-base" = "13px",
    "component-size" = "36px"
  )
)

ui <- el_page(
  theme = theme,
  el_input("name", placeholder = "Rounder, smaller", width = "260px"),
  el_button("go", "Go", type = "primary"),
  el_tag("t", "Tag")
)

shinyApp(ui, function(input, output, session) {})

They are set on the page as CSS variables, as Element Plus’s theming guide sets them: nothing is compiled, and a theme costs nothing to switch. A brand colour brings its tints – --el-color-primary-light-3 to -light-9, -dark-2 – for the light page and for dark mode. use_element(theme =) does the same on a page that is not an el_page().

Further

Internationalization: el_page(locale =).
Dark mode: Element Plus’s html.dark.
Custom defaults: el_page(size =, z_index =) and el_config_provider().
Built-in transitions: el-fade-in, el-zoom-in-top, el$collapse_transition().
