DateTimePicker

Source: vignettes/articles/components/datetime-picker.Rmd
datetime-picker.Rmd

Select date and time in one picker.

Tip

DateTimePicker is derived from DatePicker and TimePicker. For a more detailed explanation on attributes, you can refer to DatePicker and TimePicker.

Date and time

You can select date and time in one picker at the same time by setting type to datetime. The way to use shortcuts is the same as Date Picker.

block <- function(title, picker) {
  tags$div(class = "block", tags$span(class = "demonstration", title), picker)
}
tagList(
  tags$style(
    ".demo-datetime-picker { display: flex; width: 100%; flex-wrap: wrap; }
     .demo-datetime-picker .block { padding: 30px 0; text-align: center;
       border-right: solid 1px var(--el-border-color); flex: 1; min-width: 300px; }
     .demo-datetime-picker .block:last-child { border-right: none; }
     .demo-datetime-picker .demonstration { display: block; margin-bottom: 20px;
       color: var(--el-text-color-secondary); font-size: 14px; }"
  ),
  tags$div(
    class = "demo-datetime-picker",
    block(
      "Default",
      el_date_picker(
        "dtp1",
        type = "datetime",
        placeholder = "Select date and time"
      )
    ),
    block(
      "With shortcuts",
      el_date_picker(
        "dtp2",
        type = "datetime",
        placeholder = "Select date and time",
        shortcuts = list(
          list(text = "Today", value = JS("new Date()")),
          list(
            text = "Yesterday",
            value = JS(
              "function() { var d = new Date(); d.setDate(d.getDate() - 1); return d; }"
            )
          ),
          list(
            text = "A week ago",
            value = JS(
              "function() { var d = new Date(); d.setDate(d.getDate() - 7); return d; }"
            )
          )
        )
      )
    ),
    block(
      "With default time",
      el_date_picker(
        "dtp3",
        type = "datetime",
        placeholder = "Select date and time",
        default_time = JS("new Date(2000, 1, 1, 12, 0, 0)")
      )
    )
  )
)
Default
With shortcuts
With default time

DateTime Formats

Use format to control displayed text’s format in the input box. Use value-format to control binding value’s format.

By default, the component accepts and emits a Date object.

Check the list here of all available formats of Day.js.

Warning

Pay attention to capitalization

What each picker reports is input$<id>: in the format value_format names, "x" a timestamp. format is what the box shows.

block <- function(title, id, ...) {
  tags$div(
    class = "block",
    tags$span(class = "demonstration", title),
    tags$div(class = "demonstration", textOutput(paste0(id, "_value"))),
    el_date_picker(id, type = "datetime", placeholder = "Pick a Date", ...)
  )
}
ui <- el_page(
  tags$style(
    ".demo-datetime-picker { display: flex; width: 100%; flex-wrap: wrap; }
     .demo-datetime-picker .block { padding: 30px 0; text-align: center;
       border-right: solid 1px var(--el-border-color); flex: 1; min-width: 300px; }
     .demo-datetime-picker .block:last-child { border-right: none; }
     .demo-datetime-picker .demonstration { display: block; margin-bottom: 20px;
       color: var(--el-text-color-secondary); font-size: 14px; }"
  ),
  tags$div(
    class = "demo-datetime-picker",
    block("Default value format", "dtp_fmt1", format = "YYYY/MM/DD HH:mm:ss"),
    block(
      "Use value-format",
      "dtp_fmt2",
      format = "YYYY/MM/DD hh:mm:ss",
      value_format = "YYYY-MM-DD h:m:s a"
    ),
    block(
      "Timestamp",
      "dtp_fmt3",
      format = "YYYY/MM/DD hh:mm:ss",
      value_format = "x"
    )
  )
)
server <- function(input, output, session) {
  for (id in c("dtp_fmt1", "dtp_fmt2", "dtp_fmt3")) {
    local({
      id <- id
      output[[paste0(id, "_value")]] <- renderText({
        paste("Value:", format(input[[id]], scientific = FALSE))
      })
    })
  }
}
shinyApp(ui, server)

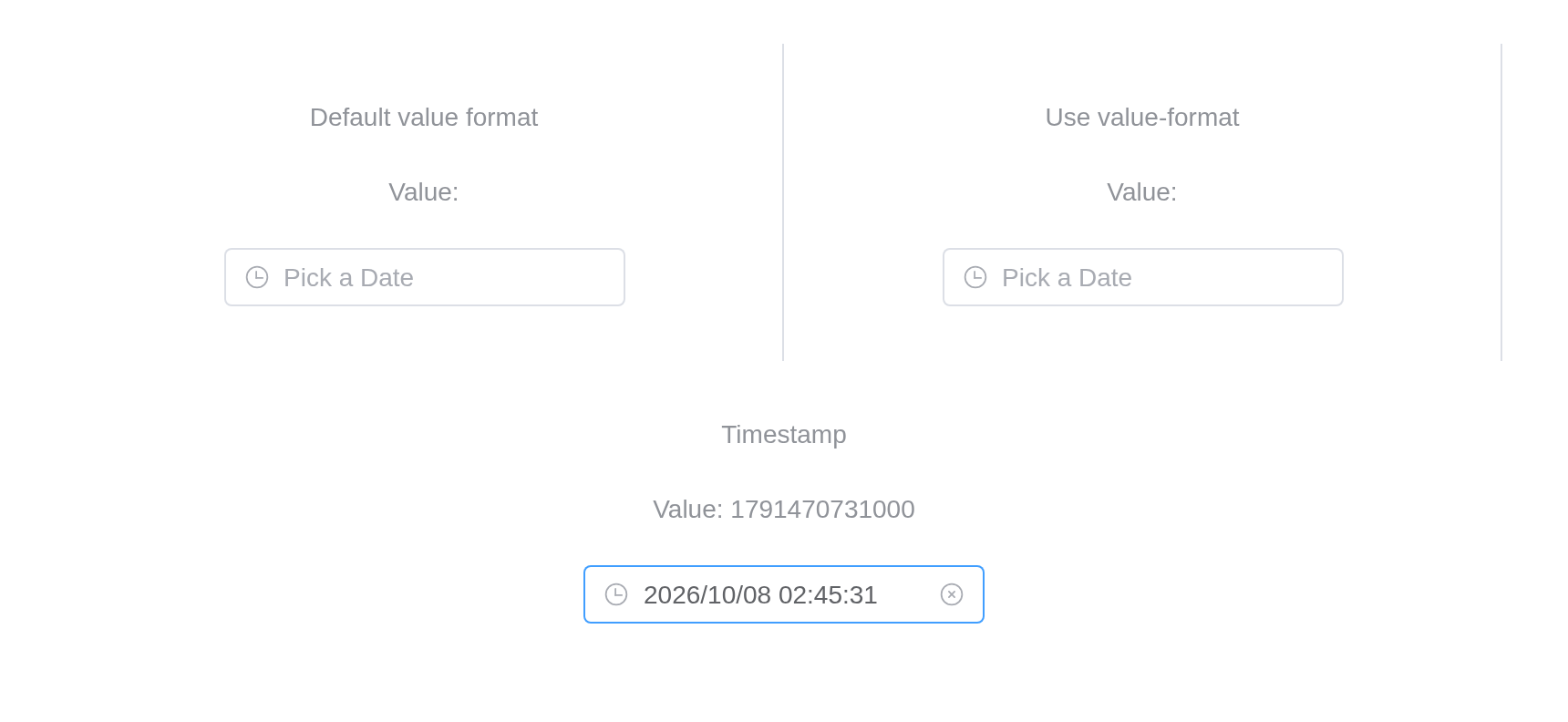

The date-and-time-formats example, running

Date and time formats in dropdown panel

Use date-format and time-format to control displayed text’s format in the dropdown panel’s input box.

tagList(
  tags$style(
    ".demo-datetime-picker { display: flex; width: 100%; flex-wrap: wrap;
       justify-content: space-around; align-items: stretch; }
     .demo-datetime-picker .block { padding: 30px 0; text-align: center;
       min-width: 300px; flex: 1; }
     .demo-datetime-picker .line { width: 1px; background-color: var(--el-border-color); }"
  ),
  tags$div(
    class = "demo-datetime-picker",
    tags$div(
      class = "block",
      el_date_picker(
        "dtp_fmt_panel",
        type = "datetime",
        placeholder = "Pick a Date",
        format = "YYYY-MM-DD HH:mm:ss",
        date_format = "MMM DD, YYYY",
        time_format = "HH:mm"
      )
    ),
    tags$div(class = "line"),
    tags$div(
      class = "block",
      el_date_picker(
        "dtp_fmt_range",
        type = "datetimerange",
        start_placeholder = "Start date",
        end_placeholder = "End date",
        format = "YYYY-MM-DD HH:mm:ss",
        date_format = "YYYY/MM/DD ddd",
        time_format = "A hh:mm:ss"
      )
    )
  )
)

Date and time range

You can select date and time range by setting type to datetimerange.

block <- function(title, picker) {
  tags$div(class = "block", tags$span(class = "demonstration", title), picker)
}
range_back <- function(text, step) {
  list(
    text = text,
    value = JS(sprintf(
      "function() { var e = new Date(), s = new Date(); %s; return [s, e]; }",
      step
    ))
  )
}
tagList(
  tags$style(
    ".demo-datetime-picker { display: flex; width: 100%; flex-wrap: wrap; }
     .demo-datetime-picker .block { padding: 30px 0; text-align: center;
       border-right: solid 1px var(--el-border-color); flex: 1; min-width: 300px; }
     .demo-datetime-picker .block:last-child { border-right: none; }
     .demo-datetime-picker .demonstration { display: block; margin-bottom: 20px;
       color: var(--el-text-color-secondary); font-size: 14px; }"
  ),
  tags$div(
    class = "demo-datetime-picker",
    block(
      "Default",
      el_date_picker(
        "dtp_range",
        type = "datetimerange",
        value = c("2000-11-10 10:10:00", "2000-11-11 10:10:00"),
        range_separator = "To",
        start_placeholder = "Start date",
        end_placeholder = "End date"
      )
    ),
    block(
      "With shortcuts",
      el_date_picker(
        "dtp_range_quick",
        type = "datetimerange",
        range_separator = "To",
        start_placeholder = "Start date",
        end_placeholder = "End date",
        shortcuts = list(
          range_back("Last week", "s.setDate(s.getDate() - 7)"),
          range_back("Last month", "s.setMonth(s.getMonth() - 1)"),
          range_back("Last 3 months", "s.setMonth(s.getMonth() - 3)")
        )
      )
    )
  )
)
Default
With shortcuts

Single Panel

By default date picker ranges have two panels. If you want one panel set the single-panel attribute.

tags$div(
  style = "padding: 30px 0; text-align: center",
  tags$span(
    style = "display: block; margin-bottom: 20px; color: var(--el-text-color-secondary); font-size: 14px",
    "single-panel"
  ),
  el_date_picker("dtp_single", type = "datetimerange", single_panel = TRUE)
)
single-panel

Default time value for start date and end date

When picking date range on the date panel with type datetimerange, 00:00:00 will be used as the default time value for start and end date. We can control it with the default-time attribute. default-time accepts an array of up to two Date objects. The first item controls time value of the start date and the second item controls time value of the end date.

block <- function(title, picker) {
  tags$div(class = "block", tags$span(class = "demonstration", title), picker)
}
tagList(
  tags$style(
    ".demo-datetime-picker { display: flex; width: 100%; flex-wrap: wrap; }
     .demo-datetime-picker .block { padding: 30px 0; text-align: center;
       border-right: solid 1px var(--el-border-color); flex: 1; min-width: 300px; }
     .demo-datetime-picker .block:last-child { border-right: none; }
     .demo-datetime-picker .demonstration { display: block; margin-bottom: 20px;
       color: var(--el-text-color-secondary); font-size: 14px; }"
  ),
  tags$div(
    class = "demo-datetime-picker",
    block(
      "Start and end date time 12:00:00",
      el_date_picker(
        "dtp_dt1",
        type = "datetimerange",
        start_placeholder = "Start Date",
        end_placeholder = "End Date",
        default_time = JS("new Date(2000, 1, 1, 12, 0, 0)")
      )
    ),
    block(
      "Start date time 12:00:00, end date time 08:00:00",
      el_date_picker(
        "dtp_dt2",
        type = "datetimerange",
        start_placeholder = "Start Date",
        end_placeholder = "End Date",
        default_time = list(
          JS("new Date(2000, 1, 1, 12, 0, 0)"),
          JS("new Date(2000, 2, 1, 8, 0, 0)")
        )
      )
    )
  )
)
Start and end date time 12:00:00
Start date time 12:00:00, end date time 08:00:00

Custom icon

Custom icons available with slots.

arrows <- list(
  `prev-month` = el_icon("CaretLeft"),
  `next-month` = el_icon("CaretRight"),
  `prev-year` = el_icon("Back"),
  `next-year` = el_icon("Right")
)
tagList(
  tags$style(
    ".demo-datetime-picker-icon { display: flex; width: 100%; flex-wrap: wrap;
       justify-content: space-around; align-items: stretch; }
     .demo-datetime-picker-icon .block { padding: 30px 0; text-align: center;
       min-width: 300px; flex: 1; }
     .demo-datetime-picker-icon .line { width: 1px; background-color: var(--el-border-color); }"
  ),
  tags$div(
    class = "demo-datetime-picker-icon",
    tags$div(
      class = "block",
      el_date_picker(
        "dtp_icons",
        type = "datetime",
        placeholder = "Pick a Date",
        format = "YYYY-MM-DD HH:mm:ss",
        date_format = "MMM DD, YYYY",
        time_format = "HH:mm",
        slots = arrows
      )
    ),
    tags$div(class = "line"),
    tags$div(
      class = "block",
      el_date_picker(
        "dtp_icons_range",
        type = "datetimerange",
        start_placeholder = "Start date",
        end_placeholder = "End date",
        format = "YYYY-MM-DD HH:mm:ss",
        date_format = "YYYY/MM/DD ddd",
        time_format = "A hh:mm:ss",
        unlink_panels = TRUE,
        slots = arrows
      )
    )
  )
)

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element In R Description Type Accepted Default
model-value value; input$<id> binding value, if it is an range picker, the length of the array should be 2 1 / 2 / 3 / 4number[] \\| string[] \\| Date[] ’’
readonly readonly whether DatePicker is read only 5 false
disabled disabled whether DatePicker is disabled 6 false
editable editable whether the input is editable 7 true
clearable clearable whether to show clear button 8 true
size size size of Input 9'large' \\| 'default' \\| 'small' default
placeholder placeholder placeholder in non-range mode 10 —
start-placeholder start_placeholder placeholder for the start date in range mode 11 —
end-placeholder end_placeholder placeholder for the end date in range mode 12 —
arrow-control arrow_control whether to pick time using arrow buttons 13 false
type type type of the picker 14'year' \\| 'month' \\| 'date' \\| 'datetime' \\| 'week' \\| 'datetimerange' \\| 'daterange' date
format format format of the displayed value in the input box 15 see date formats YYYY-MM-DD HH:mm:ss
popper-class popper_class custom class name for DateTimePicker’s dropdown 16 —
popper-style popper_style custom style for DateTimePicker’s dropdown 17 / 18 —
popper-options popper_options Customized popper option see more at popper.js 19Partial<PopperOptions> {}
fallback-placements fallback_placements list of possible positions for Tooltip popper.js 20Placement[] [‘bottom’, ‘top’, ‘right’, ‘left’]
placement placement position of dropdown Placement bottom
range-separator range_separator range separator 21 ‘-’
default-value default_value optional, default date of the calendar 22Date \\| [Date, Date] —
default-time default_time the default time value after picking a date. Time 00:00:00 will be used if not specified 23Date \\| [Date, Date] —
value-format value_format optional, format of binding value. If not specified, the binding value will be a Date object 24 see date formats —
date-format date_format optional, format of the date displayed in input’s inner panel 25 see date formats YYYY-MM-DD
time-format time_format optional, format of the time displayed in input’s inner panel 26 see date formats HH:mm:ss
id id, the Shiny input’s same as id in native input 27 / 28[string, string] —
unlink-panels unlink_panels unlink two date-panels in range-picker 29 false
single-panel single_panel show only one panel in range-picker 30 false
prefix-icon prefix_icon Custom prefix icon component 31 / Component Date
clear-icon clear_icon Custom clear icon component 32 / Component CircleClose
shortcuts shortcuts an object array to set shortcut options 33Array<{ text: string, value: Date \\| Function }> —
disabled-date disabled_date a function determining if a date is disabled with that date as its parameter. Should return a Boolean 34(data: Date) => boolean —
disabled-hours disabled_hours To specify the array of hours that cannot be selected 35(role: string, comparingDate?: Dayjs) => number[] —
disabled-minutes disabled_minutes To specify the array of minutes that cannot be selected 36(hour: number, role: string, comparingDate?: Dayjs) => number[] —
disabled-seconds disabled_seconds To specify the array of seconds that cannot be selected 37(hour: number, minute: number, role: string, comparingDate?: Dayjs) => number[] —
cell-class-name cell_class_name set custom className 38(data: Date) => string —
teleported teleported whether datetime-picker dropdown is teleported to the body 39 true
empty-values empty_values empty values of component, see config-provider 40 —
value-on-clear value_on_clear clear return value, see config-provider 41 / 42 / 43 / 44 —
show-now show_now whether to show the now button 45 true
show-footer show_footer whether to show footer where the date picker is one 46'datetime' \\| 'datetimerange' 47 true
show-confirm show_confirm whether to show the confirm button 48 true
show-week-number show_week_number show the week number besides the week 49 false

Events

Element In R Description
change input$<id>, the value triggers when user confirms the value or click outside
blur input$<id>_blur triggers when Input blurs
focus input$<id>_focus triggers when Input focuses
clear input$<id>_clear triggers when a clear button is clicked
calendar-change input$<id>_calendar_change triggers when the calendar selected date is changed. Only for range
panel-change input$<id>_panel_change triggers when the navigation button click.
visible-change input$<id>_visible_change triggers when the DateTimePicker’s dropdown appears/disappears

Slots

Element In R Description
default default content custom cell content
range-separator slots = list(range-separator = ) custom range separator content
prev-month slots = list(prev-month = ) prev month icon
next-month slots = list(next-month = ) next month icon
prev-year slots = list(prev-year = ) prev year icon
next-year slots = list(next-year = ) next year icon

Exposes

Element In R Description
focus call_el(session, id, "focus") focus the DatePicker component
blur call_el(session, id, "blur") blur the DatePicker component
