Loading • shiny.element

Show animation while loading data.

Loading inside a container

Displays animation in a container (such as a table) while loading data.

Element Plus provides two ways to invoke Loading: directive and service. For the custom directive v-loading, you just need to bind a boolean value to it. By default, the loading mask will append to the element where the directive is used. Adding the body modifier makes the mask append to the body element.

A table’s own loading draws Element Plus’s mask over it, as v-loading does; update_el_table(loading =) turns it on and off.

table_data <- data.frame(
  date = c("2016-05-02", "2016-05-04", "2016-05-01"),
  name = "John Smith",
  address = "No.1518,  Jinshajiang Road, Putuo District"
)
el_table(
  loading = TRUE,
  data = table_data,
  columns = list(
    el_table_column("date", "Date", width = 180),
    el_table_column("name", "Name", width = 180),
    el_table_column("address", "Address")
  )
)

Customization

You can customize loading text, loading spinner and background color.

Add attribute element-loading-text to the element on which v-loading is bound, and its value will be displayed under the spinner. Similarly, the element-loading-spinner / element-loading-svg and element-loading-background attributes are used to set the svg icon, background color value, and loading icon, respectively.

loading_options sets the mask’s text, spinner and background, as the element-loading-* attributes do. el_loading() covers an element of your choice from the server with the same options.

table_data <- data.frame(
  date = c("2016-05-02", "2016-05-04", "2016-05-01"),
  name = "John Smith",
  address = "No.1518,  Jinshajiang Road, Putuo District"
)
columns <- list(
  el_table_column("date", "Date", width = 180),
  el_table_column("name", "Name", width = 180),
  el_table_column("address", "Address")
)
svg <- '
  <path class="path" d="
    M 30 15
    L 28 17
    M 25.61 25.61
    A 15 15, 0, 0, 1, 15 30
    A 15 15, 0, 1, 1, 27.99 7.5
    L 15 15
  " style="stroke-width: 4px; fill: rgba(0, 0, 0, 0)"/>'
tagList(
  tags$style(
    ".example-showcase .el-loading-mask { z-index: 9; }"
  ),
  el_table(
    loading = TRUE,
    loading_options = list(
      text = "Loading...",
      spinner = svg,
      svg_view_box = "-10, -10, 50, 50",
      background = "rgba(122, 122, 122, 0.8)"
    ),
    data = table_data,
    columns = columns
  ),
  tags$div(
    class = "custom-loading-svg",
    el_table(
      loading = TRUE,
      loading_options = list(svg = svg, svg_view_box = "-10, -10, 50, 50"),
      data = table_data,
      columns = columns
    )
  )
)

Warning

Although the element-loading-spinner / element-loading-svg attribute supports incoming HTML fragments, it is very dangerous to dynamically render arbitrary HTML on the website, because it is easy to cause XSS attack. Please make sure that the content of element-loading-spinner / element-loading-svg is trustworthy. Never assign user-submitted content to the element-loading-spinner / element-loading-svg attribute.

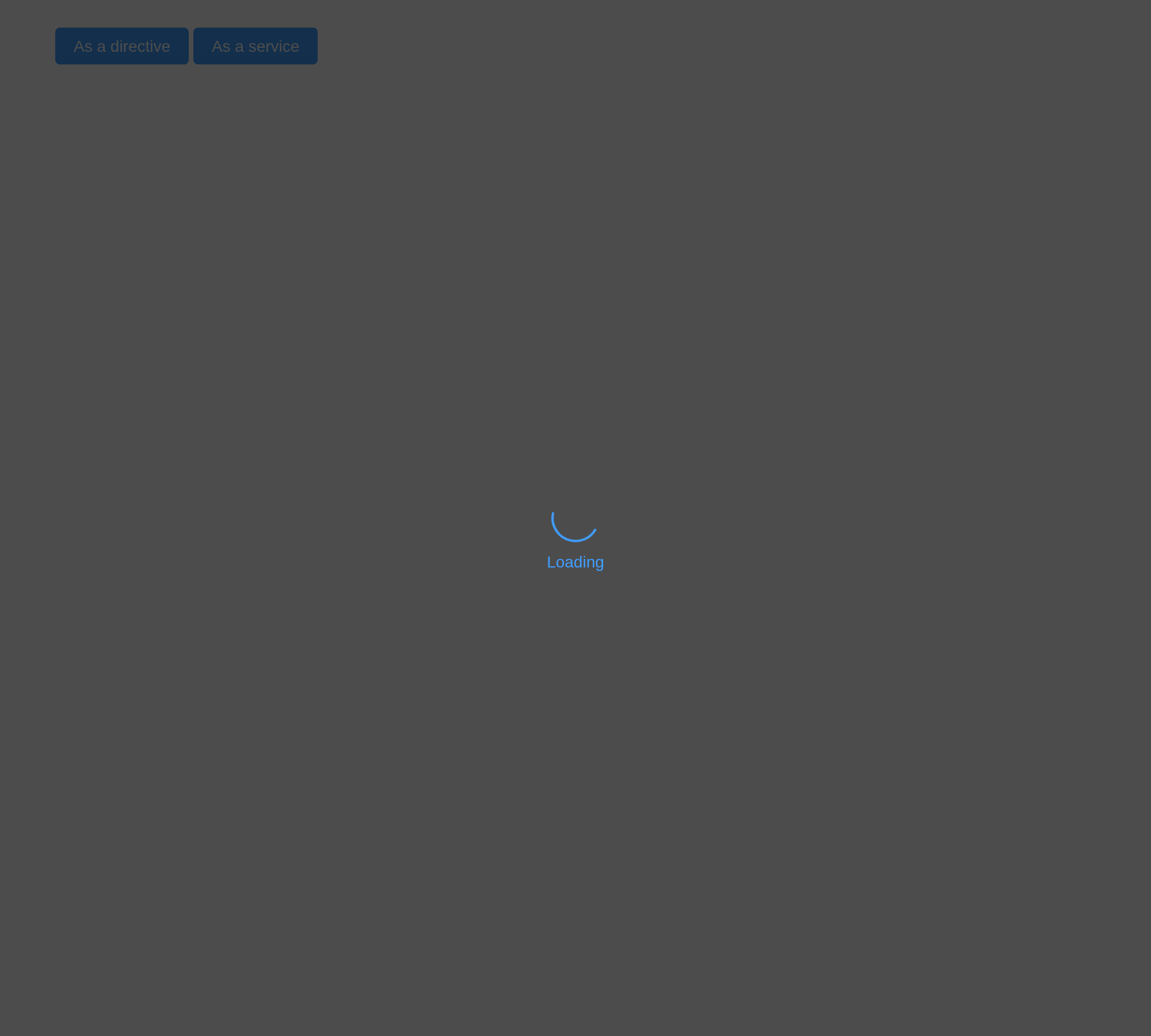

Full screen loading

Show a full screen animation while loading data.

When used as a directive, a full screen Loading requires the fullscreen modifier, and it will be appended to body. In this case, if you wish to disable scrolling on body, you can add another modifier lock. When used as a service, Loading will be full screen by default.

el_loading(fullscreen = TRUE) covers the page until el_loading_close(); lock stops it scrolling meanwhile.

ui <- el_page(
  el_button("full_directive", "As a directive", type = "primary"),
  el_button("full_service", "As a service", type = "primary")
)
server <- function(input, output, session) {
  cover <- function(...) {
    el_loading(session, "page", fullscreen = TRUE, lock = TRUE, ...)
    later::later(function() el_loading_close(session, "page"), 2)
  }
  observeEvent(input$full_directive, cover())
  observeEvent(input$full_service, {
    cover(text = "Loading", background = "rgba(0, 0, 0, 0.7)")
  })
}
shinyApp(ui, server)

Service

You can also invoke Loading with a service. Import Loading service:

Invoke it:

The parameter options is the configuration of Loading, and its details can be found in the following table. LoadingService returns a Loading instance, and you can close it by invoking its close method:

Note that in this case the full screen Loading is singleton. If a new full screen Loading is invoked before an existing one is closed, the existing full screen Loading instance will be returned instead of actually creating another Loading instance:

Calling the close method on any one of them can close this full screen Loading.

If Element Plus is imported entirely, a globally method $loading will be registered to app.config.globalProperties. You can invoke it like this: this.$loading(options), and it also returns a Loading instance.

App context inheritance

Now loading accepts a context as second parameter of the loading constructor which allows you to inject current app’s context to loading which allows you to inherit all the properties of the app.

You can use it like this:

Tip

If you globally registered ElLoading component, it will automatically inherit your app context.

API

Element Plus’s tables, and beside each entry where it is in R.

Options

Element	In R	Description	Type	Default
`target`	`target`	the DOM node Loading needs to cover. Accepts a DOM object or a string. If it’s a string, it will be passed to `document.querySelector` to get the corresponding DOM node	¹ / ²	document.body
`body`	`body`	same as the `body` modifier of `v-loading`	³	false
`fullscreen`	`fullscreen`	same as the `fullscreen` modifier of `v-loading`	⁴	true
`lock`	`lock`	same as the `lock` modifier of `v-loading`	⁵	false
`text`	`text`	loading text that displays under the spinner	⁶ / ⁷ / ⁸`VNode[]`	—
`spinner`	`spinner`	class name of the custom spinner	⁹	—
`background`	`background`	background color of the mask	¹⁰	—
`customClass`	`custom_class`	custom class name for loading	¹¹	—
`svg`	`svg`	custom SVG element to override the default loading spinner	¹²	—
`svgViewBox`	`svg_view_box`	sets the viewBox attribute for loading svg element	¹³	—
`beforeClose`	`before_close`	Function executed before loading attempts to close. If this function returns false, the closing process will be aborted. Otherwise, the loading will close.	¹⁴`() => boolean`	—
`closed`	`el_loading_close()`	Function triggered after loading has completely closed	¹⁵`() => void`	—
