Popover • shiny.element

Placement

Popover has 9 placements.

Use attribute content to set the display content when hover. The attribute placement determines the position of the Popover. Its value is [orientation]-[alignment] with four orientations top, left, right, bottom and three alignments start, end, null, and the default alignment is null. Take placement="left-end" for example, Popover will display on the left of the element which you are hovering and the bottom of the Popover aligns with the bottom of the element.

places <- c(
  "top-start",
  "top",
  "top-end",
  "left",
  "right",
  "bottom-start",
  "bottom",
  "bottom-end"
)
tags$div(
  style = "padding: 60px 100px; display: flex; flex-wrap: wrap; gap: 12px",
  lapply(places, function(p) {
    el_popover(
      paste0("po_", gsub("-", "_", p)),
      reference = el$button(p),
      placement = p,
      title = "Title",
      popover_width = 200,
      content = "this is content, this is content, this is content"
    )
  })
)

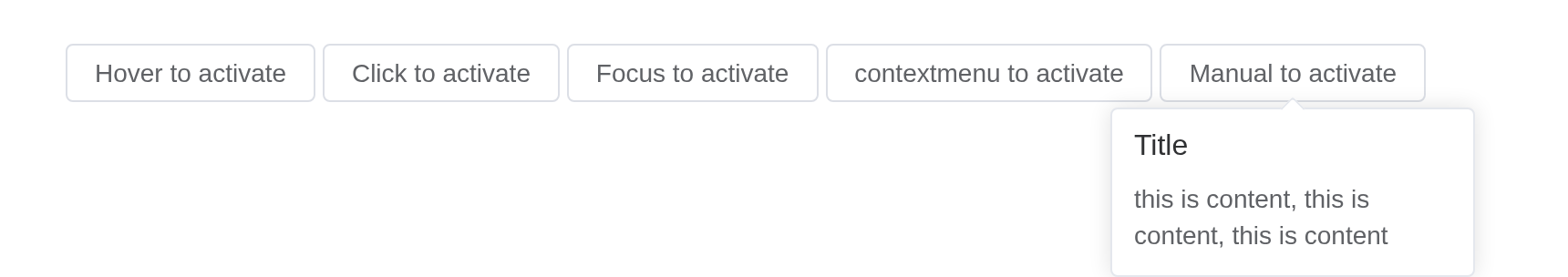

Basic usage

Popover is built with ElTooltip. So for some duplicated attributes, please refer to the documentation of Tooltip.

The trigger attribute is used to define how popover is triggered: hover, click, focus or contextmenu . If you want to manually control it, you can set :visible.

Each button opens its popover as its label says: contextmenu on a right-click, as the browser’s own menu, not on a left click. The last one is opened and closed by the server, update_el_popover(visible =).

pop <- function(id, label, trigger, placement = NULL, ...) {
  el_popover(
    id,
    reference = el_button(label = label),
    trigger = trigger,
    placement = placement,
    title = "Title",
    popover_width = 200,
    content = "this is content, this is content, this is content",
    ...
  )
}
ui <- el_page(
  tags$style(".el-button + .el-button { margin-left: 8px; }"),
  pop("p_hover", "Hover to activate", "hover", "top-start"),
  pop("p_click", "Click to activate", "click", "bottom"),
  pop("p_focus", "Focus to activate", "focus", "right"),
  pop("p_contextmenu", "contextmenu to activate", "contextmenu"),
  el_popover(
    "p_manual",
    reference = el_button("p_manual_btn", "Manual to activate"),
    visible = FALSE,
    placement = "bottom",
    title = "Title",
    popover_width = 200,
    content = "this is content, this is content, this is content"
  )
)
server <- function(input, output, session) {
  observeEvent(input$p_manual_btn, {
    update_el_popover(
      session,
      "p_manual",
      visible = input$p_manual_btn %% 2 == 1
    )
  })
}
shinyApp(ui, server)

Virtual triggering

Like Tooltip, Popover can be triggered by virtual elements, if your use case includes separate the triggering element and the content element, you should definitely use the mechanism, normally we use #reference to place our triggering element, with virtual-ref API you can set your triggering element anywhere you like, but notice that the triggering element should be an element that accepts mouse and keyboard event.

Warning

v-popover is about to be deprecated, please use virtual-ref as alternative.

virtual_ref is a CSS selector for the element that opens the popover, wherever it is on the page.

tagList(
  el_button("vp_btn", "Click me"),
  el_popover(
    "vp",
    title = "With title",
    content = "Some content",
    trigger = "click",
    virtual_ref = "#vp_btn"
  )
)

Rich content

Other components/elements can be nested in popover. Following is an example of nested table.

replace the content attribute with a default slot.

A popover holds any UI: a table, or rich content beside an avatar. A select inside one wants teleported = FALSE: its options are otherwise drawn outside the popover, and choosing one closes it, as in Element itself.

avatar <- "https://avatars.githubusercontent.com/u/72015883?v=4"
tags$div(
  style = "display: flex; align-items: center",
  el_popover(
    "addr",
    reference = el_button(
      label = "Click to activate",
      style = "margin-right: 16px"
    ),
    trigger = "click",
    popover_width = 400,
    placement = "right",
    body = el_table(
      data = data.frame(
        date = c("2016-05-02", "2016-05-04", "2016-05-01", "2016-05-03"),
        name = "Jack",
        address = "New York City"
      ),
      columns = list(
        el_table_column("date", "date", width = 150),
        el_table_column("name", "name", width = 100),
        el_table_column("address", "address", width = 300)
      )
    )
  ),
  el_popover(
    "rich",
    reference = el_avatar(src = avatar),
    popover_width = 300,
    popper_style = paste(
      "box-shadow: rgb(14 18 22 / 35%) 0px 10px 38px -10px,",
      "rgb(14 18 22 / 20%) 0px 10px 20px -15px; padding: 20px;"
    ),
    body = tags$div(
      class = "demo-rich-conent",
      style = "display: flex; gap: 16px; flex-direction: column",
      el_avatar(size = 60, src = avatar, style = "margin-bottom: 8px"),
      tags$div(
        tags$p(
          class = "demo-rich-content__name",
          style = "margin: 0; font-weight: 500",
          "Element Plus"
        ),
        tags$p(
          class = "demo-rich-content__mention",
          style = "margin: 0; font-size: 14px; color: var(--el-color-info)",
          "@element-plus"
        )
      ),
      tags$p(
        class = "demo-rich-content__desc",
        style = "margin: 0",
        "Element Plus, a Vue 3 based component library for developers,",
        "designers and product managers"
      )
    )
  )
)

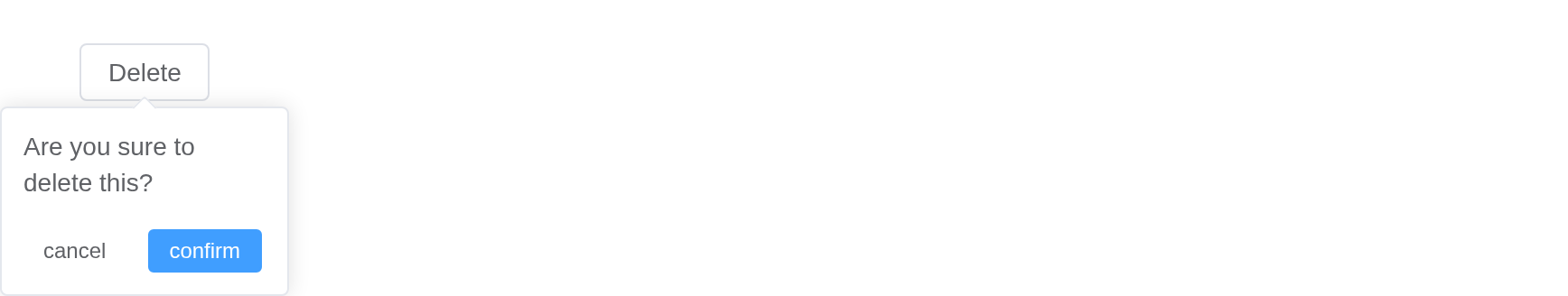

Nested operation

Of course, you can nest other operations. It’s more light-weight than using a dialog.

Opened and closed from the server with update_el_popover(visible =).

ui <- el_page(el_popover(
  "confirm",
  popover_width = 160,
  placement = "top",
  reference = el_button("delete", "Delete"),
  body = tagList(
    tags$p("Are you sure to delete this?"),
    el_button("no", "cancel", size = "small", text = TRUE),
    el_button("yes", "confirm", size = "small", type = "primary")
  )
))
server <- function(input, output, session) {
  observeEvent(input$delete, update_el_popover(id = "confirm", visible = TRUE))
  observeEvent(
    c(input$no, input$yes),
    update_el_popover(id = "confirm", visible = FALSE),
    ignoreInit = TRUE
  )
}
shinyApp(ui, server)

Directive

You can still using popover in directive way but this is not recommended anymore since this makes your application complicated, you may refer to the virtual triggering for more information.

In R

Element Plus’s v-popover directive is template syntax on another component’s element, and each component here is an application of its own, so it has no R form. virtual_ref does what it does – see Virtual triggering above.

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element	In R	Description	Type	Default
`trigger`	`trigger`	how the popover is triggered, not valid in controlled mode	¹`'click' \\\| 'focus' \\\| 'hover' \\\| 'contextmenu'` / ²`Array<'click' \\\| 'focus' \\\| 'hover' \\\| 'contextmenu'>`	hover
`trigger-keys`	`trigger_keys`	When you click the mouse to focus on the trigger element, you can define a set of keyboard codes to control the display of popover through the keyboard, not valid in controlled mode	³	[‘Enter’,‘Space’]
`title`	`title`	popover title	⁴	—
`effect`	`effect`	Tooltip theme, built-in theme: `dark` / `light`	⁵`'dark' \\\| 'light'` / ⁶	light
`content`	`content`	popover content, can be replaced with a default `slot`	⁷	’’
`width`	`popover_width`	popover width	⁸ / ⁹	150
`placement`	`placement`	popover placement	¹⁰`'top' \\\| 'top-start' \\\| 'top-end' \\\| 'bottom' \\\| 'bottom-start' \\\| 'bottom-end' \\\| 'left' \\\| 'left-start' \\\| 'left-end' \\\| 'right' \\\| 'right-start' \\\| 'right-end'`	bottom
`disabled`	`disabled`	whether Popover is disabled	¹¹	false
`visible`	`visible`	whether popover is visible	¹² / ¹³	null
`offset`	`offset`	popover offset, `Popover` is built with `Tooltip`, offset of `Popover` is `undefined`, but offset of `Tooltip` is 12	¹⁴	undefined
`transition`	`transition`	popover transition animation, the default is el-fade-in-linear	¹⁵	—
`show-arrow`	`show_arrow`	whether a tooltip arrow is displayed or not. For more info, please refer to ElPopper	¹⁶	true
`popper-options`	`popper_options`	parameters for popper.js	¹⁷	`{modifiers: [{name: 'computeStyles',options: {gpuAcceleration: false}}]}`
`popper-class`	`popper_class`	custom class name for popover	¹⁸	—
`popper-style`	`popper_style`	custom style for popover	¹⁹ / ²⁰	—
`show-after`	`show_after`	delay of appearance, in millisecond, not valid in controlled mode	²¹	0
`hide-after`	`hide_after`	delay of disappear, in millisecond, not valid in controlled mode	²²	200
`auto-close`	`auto_close`	timeout in milliseconds to hide tooltip, not valid in controlled mode	²³	0
`tabindex`	`tabindex`	tabindex of Popover	²⁴ / ²⁵	0
`teleported`	`teleported`	whether popover dropdown is teleported to the body	²⁶	true
`append-to`	`append_to`	which element the popover CONTENT appends to	²⁷ / ²⁸	body
`persistent`	`persistent`	when popover inactive and `persistent` is `false` , popover will be destroyed	²⁹	true
`virtual-triggering`	`virtual_triggering`	Indicates whether virtual triggering is enabled	³⁰	—
`virtual-ref`	`virtual_ref`	Indicates the reference element to which the popover is attached	³¹	—
`tooltip`		Inherits all attributes from Tooltip	—	—

Slots

Element	In R	Description
`default`	default content	content of popover, version ^(2.13.4) and later can receive the hide parameter.
`reference`	`slots = list(reference = )`	HTML element that triggers popover, only a single root element is accepted

Events

Element	In R	Description
`show`	`input$<id>_show`	triggers when popover shows
`before-enter`	`input$<id>_before_enter`	triggers when the entering transition before
`after-enter`	`input$<id>_after_enter`	triggers when the entering transition ends
`hide`	`input$<id>_hide`	triggers when popover hides
`before-leave`	`input$<id>_before_leave`	triggers when the leaving transition before
`after-leave`	`input$<id>_after_leave`	triggers when the leaving transition ends

Exposes

Element	In R	Description
`hide`	`call_el(session, id, "hide")`	hide popover
