Source: vignettes/articles/components/tooltip.Rmd
tooltip.Rmd

Display prompt information for mouse hover.

Basic usage

Tooltip has 9 placements.

Use attribute content to set the display content when hover. The attribute placement determines the position of the tooltip. Its value is [orientation]-[alignment] with four orientations top, left, right, bottom and three alignments start, end, null, and the default alignment is null. Take placement="left-end" for example, Tooltip will display on the left of the element which you are hovering and the bottom of the tooltip aligns with the bottom of the element.

places <- c(
  "top-start",
  "top",
  "top-end",
  "left-start",
  "left",
  "left-end",
  "right-start",
  "right",
  "right-end",
  "bottom-start",
  "bottom",
  "bottom-end"
)
tags$div(
  style = "padding: 40px 80px",
  lapply(places, function(p) {
    el_tooltip(
      paste0("tip_", gsub("-", "_", p)),
      el$button(p),
      placement = p,
      content = paste(p, "prompts info"),
      effect = "dark"
    )
  })
)

Theme

Tooltip has two built-in themes: dark and light.

Tip

To use customized theme, you will have to known where your tooltip is rendered into, if your tooltip is rendered into the root element, you will need to set the css rule globally.

It is recommended that not using linear gradient background color when you using customized theme and showing the arrow at the same time, because the popup arrow and the content are two different elements, the popup arrow’s style needs to be set individually, and when it comes to the gradient background color, it might seem a little bit weird.

Set effect to modify theme, and the default value is dark.

tagList(
  el_tooltip(
    "dark",
    el$button("Dark"),
    content = "Top center",
    placement = "top"
  ),
  el_tooltip(
    "light",
    el$button("Light"),
    content = "Bottom center",
    placement = "bottom",
    effect = "light"
  ),
  el_tooltip(
    "custom",
    el$button("Customized theme"),
    content = "Bottom center",
    effect = "customized",
    placement = "bottom"
  )
)

More Content

Display multiple lines of text and set their format.

Override attribute content of el-tooltip by adding a slot named content.

el_tooltip(
  "multi",
  el$button("Top center"),
  placement = "top",
  slots = list(content = tags$div("multiple lines", tags$br(), "second line"))
)

Advanced usage

In addition to basic usages, there are some attributes that allow you to customize your own:

transition attribute allows you to customize the animation in which the tooltip shows or hides, and the default value is el-fade-in-linear.

disabled attribute allows you to disable tooltip. You just need set it to true.

In fact, Tooltip is an extension based on ElPopper, you can use any attribute that are allowed in ElPopper.

Turned on and off from the server, update_el_tooltip(disabled =).

ui <- el_page(
  el_switch("tip_on", value = TRUE, active_text = "tooltip on"),
  el_tooltip(
    "adv",
    el$button("Hover me"),
    content = "click the switch to turn me off",
    placement = "bottom"
  )
)
server <- function(input, output, session) {
  observeEvent(
    input$tip_on,
    update_el_tooltip(id = "adv", disabled = !input$tip_on)
  )
}
shinyApp(ui, server)

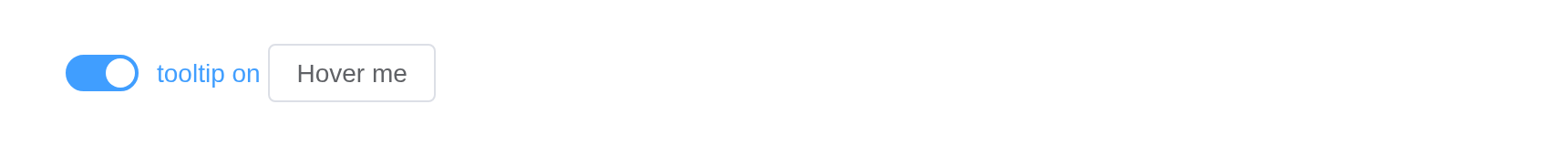

The advanced-usage example, running

Tip

The router-link component is not supported in tooltip, please use vm.$router.push.

Disabled form elements are not supported for Tooltip, more information can be found at MDN. You need to wrap the disabled form element with a container element for Tooltip to work.

HTML as content

The content attribute can be set to HTML string.

Warning

Although content property supports HTML strings, dynamically rendering arbitrary HTML on your website can be very dangerous because it can easily lead to XSS attacks. So when raw-content is on, please make sure content is trusted, and never assign user-provided content.

el_tooltip(
  "html_tip",
  el$button("hover me"),
  raw_content = TRUE,
  content = "<span>The content can be <strong>HTML</strong></span>"
)

Virtual triggering

Sometimes we want to render the tooltip on some other trigger element, we can separate the trigger and the content.

Tip

Virtual triggering tooltip is controlled component, so that you will have to control the visibility of the tooltip your own when this happens, YOU WILL NOT be able to close the tooltip by clicking somewhere else.

Upstream hands virtual-ref an element from the page’s script. In R, virtual_ref is a CSS selector for it – here a button drawn apart from the tooltip – and virtual_triggering turns on with it. A JS() function returning an object with getBoundingClientRect() also works, for a point that is not an element.

tagList(
  el_button("vt_btn", "test"),
  el_tooltip(
    "vt",
    content = "Bottom center",
    placement = "bottom",
    effect = "light",
    trigger = "click",
    virtual_ref = "#vt_btn"
  )
)

Singleton

Tooltip can also be singleton, which means you can have multiple trigger with only one tooltip instance, this function is implemented based on Virtual triggering

Tip

Known issue: when using singleton, the popup will be bouncing out from unexpected places

A virtual_ref matching several elements gives them one tooltip, which moves to whichever the pointer is over.

tagList(
  lapply(1:3, function(i) {
    tags$span(
      class = "singleton-btn",
      el_button(paste0("single_", i), "Click to open tooltip")
    )
  }),
  el_tooltip(
    "single",
    content = "Some content",
    trigger = "click",
    virtual_ref = ".singleton-btn",
    popper_class = "singleton-tooltip"
  ),
  tags$style(
    ".singleton-tooltip {
      transition: transform 0.3s var(--el-transition-function-fast-bezier);
    }"
  )
)

Controlled

Tooltip can be controlled by the parent component, by using :visible you can implement two way binding.

Shown and hidden from the server, update_el_tooltip(visible =), and then stays as set.

el_tooltip("ctl", el$button("Hover me"), visible = TRUE, content = "controlled")

Animations

Tooltip can be customized animated, you can set the desired animation use transition.

Tip

Transition Classes, more information can be found at Vue Transition.

el_tooltip(
  "anim",
  el$button("trigger me"),
  content = "I am an el-tooltip",
  transition = "slide-fade"
)

Use the append-to

You must wait for the DOM to be mounted before using targetElement.

tags$div(
  id = "tip-host",
  el_tooltip(
    "app",
    el$button("Hover me"),
    content = "Appended to #tip-host",
    append_to = "#tip-host"
  )
)

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element In R Description Type Accepted Default
append-to append_to Which element the tooltip CONTENT appends to 1 / 2 —
effect effect Tooltip theme, built-in theme: dark / light 3'dark' \\| 'light' dark
content content Display content, can be overridden by slot#content 4 ’’
raw-content raw_content Whether content is treated as HTML string 5 false
placement placement Position of Tooltip 6'top' \\| 'top-start' \\| 'top-end' \\| 'bottom' \\| 'bottom-start' \\| 'bottom-end' \\| 'left' \\| 'left-start' \\| 'left-end' \\| 'right' \\| 'right-start' \\| 'right-end' bottom
fallback-placements fallback_placements List of possible positions for Tooltip popper.js 7Placement[] —
visible visible Visibility of Tooltip 8 —
disabled disabled Whether Tooltip is disabled 9 —
offset offset Offset of the Tooltip 10 12
transition transition Animation name 11 —
popper-options popper_options popper.js parameters 12refer to popper.js doc {}
arrow-offset arrow_offset Controls the offset (padding) of the tooltip’s arrow relative to the popper. 13 5
show-after show_after Delay of appearance, in millisecond, not valid in controlled mode 14 0
show-arrow show_arrow Whether the tooltip content has an arrow 15 true
hide-after hide_after Delay of disappear, in millisecond, not valid in controlled mode 16 200
auto-close auto_close Timeout in milliseconds to hide tooltip, not valid in controlled mode 17 0
popper-class popper_class Custom class name for Tooltip’s popper 18 —
popper-style popper_style Custom style for Tooltip’s popper 19 / 20 —
enterable enterable Whether the mouse can enter the tooltip 21 true
teleported teleported Whether tooltip content is teleported, if true it will be teleported to where append-to sets 22 true
trigger trigger How should the tooltip be triggered (to show), not valid in controlled mode 23'hover' \\| 'click' \\| 'focus' \\| 'contextmenu' / 24Array<'click' \\| 'focus' \\| 'hover' \\| 'contextmenu'> hover
virtual-triggering virtual_triggering Indicates whether virtual triggering is enabled 25 —
virtual-ref virtual_ref Indicates the reference element to which the tooltip is attached 26 —
trigger-keys trigger_keys When you click the mouse to focus on the trigger element, you can define a set of keyboard codes to control the display of tooltip through the keyboard, not valid in controlled mode 27 [‘Enter’,‘Space’]
persistent persistent When tooltip inactive and persistent is false , tooltip will be destroyed 28 —
aria-label aria_label Same as aria-label 29 —
focus-on-target focus_on_target When triggering tooltips through hover, whether to focus the trigger element, which improves accessibility 30 false

Events

Element In R Description
before-show input$<id>_before_show Triggers before tooltip is shown. Passes trigger reason as argument.
show input$<id>_show Triggers when tooltip is shown. Passes trigger reason as argument.
before-hide input$<id>_before_hide Triggers before tooltip is hidden. Passes trigger reason as argument.
hide input$<id>_hide Triggers when tooltip is hidden. Passes trigger reason as argument.

Slots

Element In R Description
default default content Tooltip triggering & reference element, only a single root element is accepted
content slots = list(content = ) Customize content

Exposes

Element In R Description
isFocusInsideContent call_el(session, id, "isFocusInsideContent") Validate current focus event is trigger inside el-tooltip-content
updatePopper call_el(session, id, "updatePopper") Update el-popper component instance
onOpen call_el(session, id, "onOpen") Expose onOpen function to manage el-tooltip open state
onClose call_el(session, id, "onClose") Expose onClose function to manage el-tooltip open state
hide call_el(session, id, "hide") Expose hide function
