Watermark

Add specific text or patterns to the page.

Basic usage

The most basic usage.

el_watermark(
  content = "Element Plus",
  font = list(color = "rgba(0, 0, 0, .15)"),
  tags$div(style = "height: 500px")
)

Multi-line watermark

Use content to set an array of strings to specify multi-line text watermark content.

Several lines: content is a vector.

el_watermark(
  content = c("Element+", "Element Plus"),
  font = list(color = "rgba(0, 0, 0, .15)"),
  tags$div(style = "height: 500px")
)

Image watermark

Specify the image address via image. To ensure that the image is high definition and not stretched, set the width and height, and upload at least twice the width and height of the logo image address.

image draws a picture instead of text; watermark_width and height size it (width is the box’s).

el_watermark(
  watermark_width = 130,
  height = 30,
  image = "https://element-plus.org/images/element-plus-logo.svg",
  tags$div(style = "height: 500px")
)

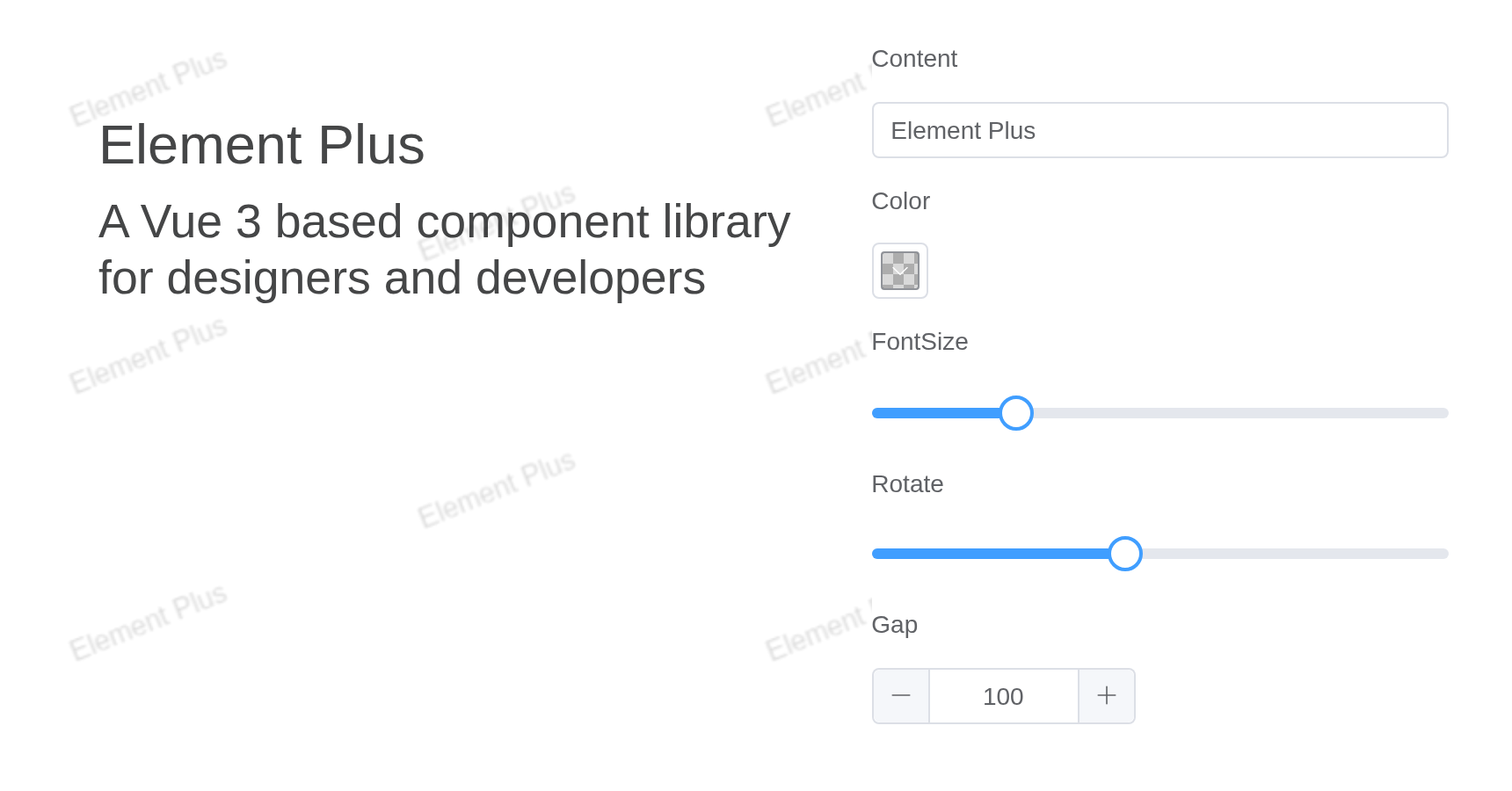

Custom configuration

Preview the watermark effect by configuring custom parameters.

Its settings from inputs: the server redraws it as they change.

ui <- el_page(
  el_row(
    el_col(span = 14, uiOutput("marked")),
    el_col(
      span = 10,
      el_input("content", label = "Content", value = "Element Plus"),
      el_color_picker(
        "color",
        label = "Color",
        value = "rgba(0, 0, 0, 0.15)",
        show_alpha = TRUE
      ),
      el_slider("size", label = "FontSize", value = 16, min = 8, max = 40),
      el_slider("rotate", label = "Rotate", value = -22, min = -180, max = 180),
      el_input_number("gap", label = "Gap", value = 100)
    )
  )
)

server <- function(input, output, session) {
  output$marked <- renderUI(el_watermark(
    content = input$content,
    rotate = input$rotate,
    gap = rep(input$gap %||% 100, 2),
    font = list(fontSize = input$size, color = input$color),
    tags$div(
      style = "padding: 40px 20px; height: 360px",
      tags$h1("Element Plus"),
      tags$h2("A Vue 3 based component library for designers and developers")
    )
  ))
}

shinyApp(ui, server)

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element	In R	Description	Type	Accepted	Default
width	width	The width of the watermark, the default value of content is its own width	1		120
height	height	The height of the watermark, the default value of content is its own height	2		64
rotate	rotate	When the watermark is drawn, the rotation Angle, unit °	3		-22
z-index	z_index	The z-index of the appended watermark element	4		9
image	image	Image source, it is recommended to export 2x or 3x image, high priority	5		—
content	content	Watermark text content	6/7string[]		Element Plus
font	font	Text style	Font		Font
gap	gap	The spacing between watermarks	8[number, number]		$$100, 100$$
offset	offset	The offset of the watermark from the upper left corner of the container. The default is gap/2	9[number, number]		$$gap\[0$$/2, gap$$1$$/2]

Slots

Element	In R	Description
default	default content	container for adding watermark
