Statistic • shiny.element

Basic usage

To highlight a number or a group of numbers, such as statistical value, amount, and ranking, you can add elements such as icon and unit before and after the number and title. And use vueuse to add animated transitions to value.

el_row(
  el_col(span = 6, el_statistic(title = "Daily active users", value = 268500)),
  el_col(
    span = 6,
    el_statistic(
      value = 138,
      slots = list(
        title = tags$div(
          style = "display: inline-flex; align-items: center",
          "Ratio of men to women ",
          el_icon("Warning", size = "12px")
        ),
        suffix = "/100"
      )
    )
  ),
  el_col(span = 6, el_statistic(title = "Total Transactions", value = 172000)),
  el_col(
    span = 6,
    el_statistic(
      title = "Feedback number",
      value = 562,
      slots = list(suffix = el_icon("ChatLineRound"))
    )
  )
)

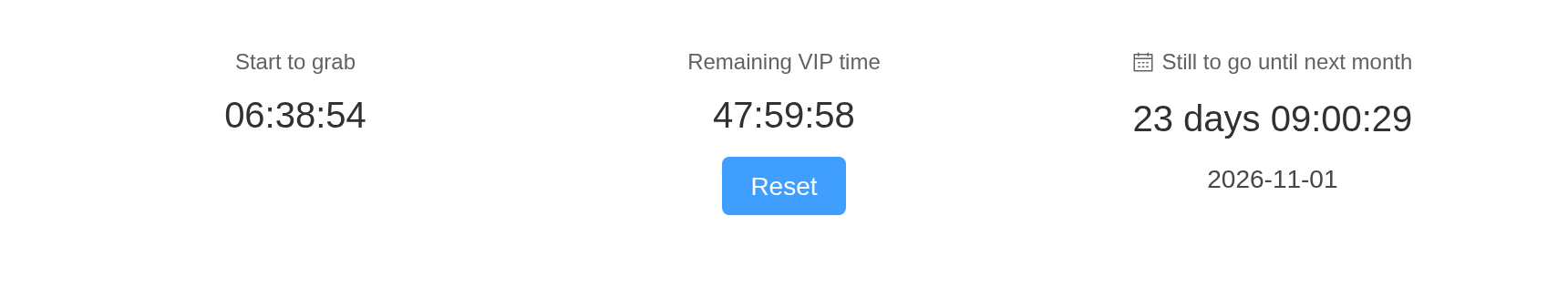

Countdown

Countdown component, support to add other components control countdown.

input$<id>_finish fires at zero. Reset sets the second one’s value again, with update_el_countdown().

next_month <- as.POSIXct(
  format(seq(Sys.Date(), by = "month", length.out = 2)[2], "%Y-%m-01")
)
col <- function(...) {
  el_col(
    xs = 24,
    sm = 12,
    md = 8,
    style = "text-align: center; margin-bottom: 16px",
    ...
  )
}
ui <- el_page(
  el_row(
    gutter = 16,
    col(el_countdown(
      "cd_grab",
      title = "Start to grab",
      value = Sys.time() + 60 * 60 * 7
    )),
    col(
      el_countdown(
        "cd_vip",
        title = "Remaining VIP time",
        format = "HH:mm:ss",
        value = Sys.time() + 60 * 60 * 24 * 2 - 60 * 60
      ),
      tags$div(
        style = "margin-top: 8px",
        el_button("cd_reset", "Reset", type = "primary")
      )
    ),
    col(
      el_countdown(
        "cd_month",
        format = "DD [days] HH:mm:ss",
        value = next_month,
        slots = list(
          title = tags$div(
            style = "display: inline-flex; align-items: center",
            el_icon("Calendar", size = 12, style = "margin-right: 4px"),
            "Still to go until next month"
          )
        )
      ),
      tags$div(style = "margin-top: 8px", format(next_month, "%Y-%m-%d"))
    )
  )
)
server <- function(input, output, session) {
  observeEvent(input$cd_reset, {
    update_el_countdown(
      session,
      "cd_vip",
      value = Sys.time() + 60 * 60 * 24 * 2
    )
  })
}
shinyApp(ui, server)

Tip

In formatting it is suggested to be in the range of days

Card usage

Card usage display, can be freely combined

card <- function(title, value, delta, up) {
  el_col(
    span = 8,
    tags$div(
      style = paste(
        "height: 100%; padding: 16px; border-radius: 4px; background: var(--el-bg-color-overlay)"
      ),
      el_statistic(title = title, value = value),
      tags$div(
        style = "font-size: 12px; color: var(--el-text-color-regular); margin-top: 16px",
        "than yesterday ",
        tags$span(
          style = sprintf(
            "color: var(--el-color-%s)",
            if (up) "success" else "error"
          ),
          delta,
          el_icon(if (up) "CaretTop" else "CaretBottom")
        )
      )
    )
  )
}
el_row(
  gutter = 16,
  card("Daily active users", 98500, "24%", TRUE),
  card("Monthly Active Users", 693700, "12%", FALSE),
  card("New transactions today", 72000, "16%", TRUE)
)

than yesterday 24%

than yesterday 12%

than yesterday 16%

API

Element Plus’s tables, and beside each entry where it is in R.

Statistic Attributes

Element	In R	Description	Type	Default
`value`	`el_statistic(value =)`	Numerical content	¹	0
`decimal-separator`	`el_statistic(decimal_separator =)`	Setting the decimal point	²	.
`formatter`	`el_statistic(formatter =)`	Custom numerical presentation	³`(value: number) => string \\\| number`	—
`group-separator`	`el_statistic(group_separator =)`	Sets the thousandth identifier	⁴	,
`precision`	`el_statistic(precision =)`	numerical precision	⁵	0
`prefix`	`el_statistic(prefix =)`	Sets the prefix of a number	⁶	—
`suffix`	`el_statistic(suffix =)`	Sets the suffix of a number	⁷	—
`title`	`el_statistic(title =)`	Numeric titles	⁸	—
`value-style`	`el_statistic(value_style =)`	Styles numeric values	⁹ / ¹⁰`CSSProperties \\\| CSSProperties[] \\\| string[]`	—

Statistic Slots

Element	In R	Description
`prefix`	`slots = list(prefix = )`	Numeric prefix
`suffix`	`slots = list(suffix = )`	Suffixes for numeric values
`title`	`slots = list(title = )`	Numeric titles

Countdown Attributes

Element	In R	Description	Type	Default
`value`	`el_statistic(value =)`	target time	¹¹ / ¹²	—
`format`	`el_countdown(format =)`	Formatting the countdown display	¹³	HH:mm:ss
`prefix`	`el_statistic(prefix =)`	Sets the prefix of a countdown	¹⁴	—
`suffix`	`el_statistic(suffix =)`	Sets the suffix of a countdown	¹⁵	—
`title`	`el_statistic(title =)`	countdown titles	¹⁶	—
`value-style`	`el_statistic(value_style =)`	Styles countdown values	¹⁷ / ¹⁸`CSSProperties \\\| CSSProperties[] \\\| string[]`	—

Countdown Events

Element	In R	Description
`change`	`input$<id>_change`	Time difference change event
`finish`	`input$<id>_finish`	countdown end event

Countdown Slots

Element	In R	Description
`prefix`	`slots = list(prefix = )`	countdown value prefix
`suffix`	`slots = list(suffix = )`	countdown value suffix
`title`	`slots = list(title = )`	countdown title
