Steps • shiny.element

Guide the user to complete tasks in accordance with the process. Its steps can be set according to the actual application scenario and the number of the steps can’t be less than 2.

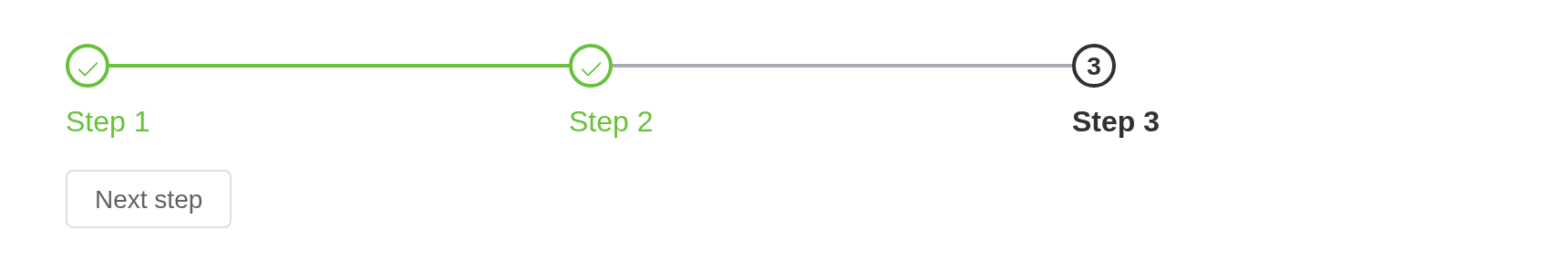

Basic usage

Simple step bar.

Set active attribute with Number type, which indicates the index of steps and starts from 0. You can set space attribute when the width of the step needs to be fixed which accepts Number type. The unit of the space attribute is px. If not set, it is responsive. Setting the finish-status attribute can change the state of the steps that have been completed.

The button moves it on with update_el_steps(active =).

ui <- el_page(
  el_steps(
    "st_basic",
    active = 0,
    finish_status = "success",
    width = "600px",
    steps = list(el_step("Step 1"), el_step("Step 2"), el_step("Step 3"))
  ),
  el_button("st_next", "Next step", style = "margin-top: 12px")
)
server <- function(input, output, session) {
  active <- reactiveVal(0)
  observeEvent(input$st_next, {
    active(if (active() > 2) 0 else active() + 1)
    update_el_steps(session, "st_basic", active = active())
  })
}
shinyApp(ui, server)

Step bar that contains status

Shows the status of the step for each step.

Use title attribute to set the name of the step, or override the attribute by using a named slot. We have listed all the slot names for you at the end of this page.

el_steps(
  "st_status",
  active = 1,
  space = 200,
  finish_status = "success",
  steps = list(
    el_step("Done"),
    el_step("Processing"),
    el_step("Step 3")
  )
)

Center

Title and description can be centered.

el_steps(
  "st_center",
  active = 2,
  align_center = TRUE,
  steps = list(
    el_step("Step 1", "Some description"),
    el_step("Step 2", "Some description"),
    el_step("Step 3", "Some description"),
    el_step("Step 4", "Some description")
  )
)

Step bar with description

There is description for each step.

el_steps(
  "st_desc",
  active = 1,
  steps = list(
    el_step("Step 1", "Some description"),
    el_step("Step 2", "Some description"),
    el_step("Step 3", "Some description")
  )
)

Step bar with icon

A variety of custom icons can be used in the step bar.

The icon is set by the icon property. The types of icons can be found in the document for the Icon component. In addition, you can customize the icon through a named slot.

el_steps(
  "st_icon",
  active = 1,
  steps = list(
    el_step("Step 1", icon = "Edit"),
    el_step("Step 2", icon = "Upload"),
    el_step("Step 3", icon = "Picture")
  )
)

Vertical step bar

Vertical step bars.

You only need to set the direction attribute to vertical in the el-steps element.

tags$div(
  style = "height: 300px",
  el_steps(
    "st_vert",
    direction = "vertical",
    active = 1,
    steps = list(
      el_step("Step 1"),
      el_step("Step 2"),
      el_step("Step 3")
    )
  )
)

Simple step bar

Simple step bars, where align-center, description, direction and space will be ignored.

tagList(
  el_steps(
    "st_simple",
    active = 0,
    simple = TRUE,
    steps = list(
      el_step("Step 1", icon = "Edit"),
      el_step("Step 2", icon = "UploadFilled"),
      el_step("Step 3", icon = "Picture")
    )
  ),
  tags$div(style = "margin-top: 20px"),
  el_steps(
    "st_simple2",
    active = 0,
    finish_status = "success",
    simple = TRUE,
    steps = list(
      el_step("Step 1"),
      el_step("Step 2"),
      el_step("Step 3")
    )
  )
)

API

Element Plus’s tables, and beside each entry where it is in R.

Steps Attributes

Element	In R	Description	Type	Default
`space`	`space`	the spacing of each step, will be responsive if omitted. Supports percentage.	¹ / ²	’’
`direction`	`direction`	display direction	³`'vertical' \\\| 'horizontal'`	horizontal
`active`	`active`	current activation step	⁴	0
`process-status`	`process_status`	status of current step	⁵`'wait' \\\| 'process' \\\| 'finish' \\\| 'error' \\\| 'success'`	process
`finish-status`	`finish_status`	status of end step	⁶`'wait' \\\| 'process' \\\| 'finish' \\\| 'error' \\\| 'success'`	finish
`align-center`	`align_center`	center title and description	⁷	—
`simple`	`simple`	whether to apply simple theme	⁸	—

Steps Events

Element	In R	Description
`change`	`input$<id>_change`	triggers when the active step changes

Steps Slots

Element	In R	Description
`default`	default content	customize default content

Step Attributes

Element	In R	Description	Type	Default
`title`	`el_step(title =)`	step title	⁹	’’
`description`	`el_step(description =)`	step description	¹⁰	’’
`icon`	`el_step(icon =)`	step custom icon. Icons can be passed via named slot as well	¹¹ / ¹²	—
`status`	`el_step(status =)`	current status. It will be automatically set by Steps if not configured.	¹³`'' \\\| 'wait' \\\| 'process' \\\| 'finish' \\\| 'error' \\\| 'success'`	’’

Step Slots

Element	In R	Description
`icon`	`slots = list(icon = )`	custom icon
`title`	`slots = list(title = )`	step title
`description`	`slots = list(description = )`	step description
