InputTag

The InputTag component allows users to add content as tags.

Basic Usage

Press the Enter key to add the input as a tag.

el_input_tag(
  "tags",
  placeholder = "Please input",
  aria_label = "Please click the Enter key after input"
)

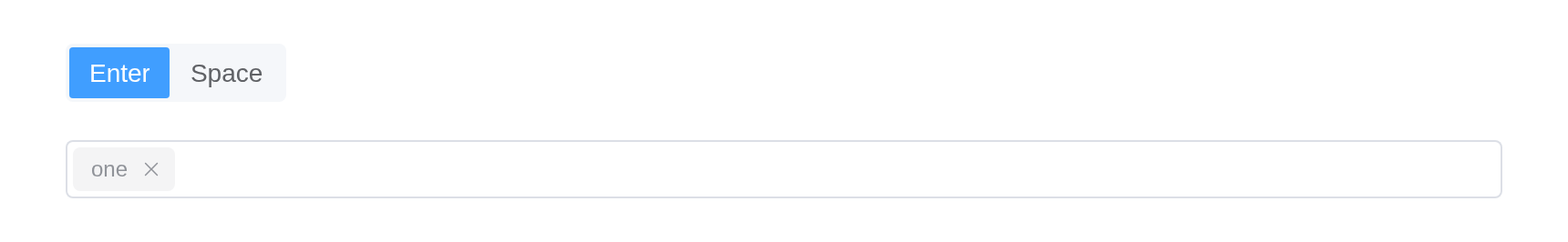

Custom Trigger

You can customize the key used to trigger the input tag. The default key is Enter.

The segmented control sets the key that makes a tag, with update_el_input_tag(trigger =).

ui <- el_page(
  tags$div(
    el_segmented("tags_key", value = "Space", options = c("Enter", "Space"))
  ),
  tags$br(),
  el_input_tag("tags_trigger", trigger = "Space", placeholder = "Please input")
)
server <- function(input, output, session) {
  observeEvent(input$tags_key, ignoreInit = TRUE, {
    update_el_input_tag(session, "tags_trigger", trigger = input$tags_key)
  })
}
shinyApp(ui, server)

Maximum Tags

You can set a limit on the number of tags that can be added.

el_input_tag("tags_max", max = 3, placeholder = "enter up to 3 tags")

Collapse Tags

Use the collapse tags attribute to merge them into one piece of text. You can use the collapse tags tooltip property to enable the behavior of hovering over collapsed text to display specific selected values. Using the collapse tags tooltip attribute will render the max attribute invalid.

words <- c("tag1", "tag2", "tag3", "tag4", "tag5")
tags$div(
  tags$p("use collapse-tags"),
  el_input_tag(
    "tags_col1",
    value = words,
    collapse_tags = TRUE,
    placeholder = "Please input",
    aria_label = "Please click the Enter key after input"
  ),
  tags$p("use collapse-tags-tooltip"),
  el_input_tag(
    "tags_col2",
    value = words,
    collapse_tags = TRUE,
    collapse_tags_tooltip = TRUE,
    placeholder = "Please input",
    aria_label = "Please click the Enter key after input"
  ),
  tags$p("use max-collapse-tags"),
  el_input_tag(
    "tags_col3",
    value = words,
    collapse_tags = TRUE,
    collapse_tags_tooltip = TRUE,
    max_collapse_tags = 3,
    placeholder = "Please input",
    aria_label = "Please click the Enter key after input"
  )
)

use collapse-tags

use collapse-tags-tooltip

use max-collapse-tags

Disabled

You can set the InputTag to be disabled.

el_input_tag(
  "tags_dis",
  value = c("tag1", "tag2", "tag3"),
  disabled = TRUE,
  placeholder = "Please input"
)

Clearable

You can set whether to show the clear button.

el_input_tag(
  "tags_clear",
  value = c("tag1", "tag2", "tag3"),
  clearable = TRUE,
  placeholder = "Please input"
)

Custom Clear Icon

You can customize the clear icon by setting the clear-icon attribute.

el_input_tag(
  "tags_clear_icon",
  value = c("custom", "clear", "icon"),
  clearable = TRUE,
  clear_icon = "CloseBold",
  placeholder = "Custom clear icon"
)

Draggable

You can set whether tags can be dragged.

el_input_tag(
  "tags_drag",
  value = c("tag1", "tag2", "tag3"),
  draggable = TRUE,
  placeholder = "Please input"
)

Delimiter

You can add a tag when a delimiter is matched.

el_input_tag(
  "tags_delim",
  draggable = TRUE,
  delimiter = ",",
  placeholder = "Try to separate words with ,"
)

Sizes

Add size attribute to change the size of InputTag. In addition to the default size, there are two other options: large, small.

tagList(
  el_input_tag("tags_l", size = "large", placeholder = "Please input"),
  tags$br(),
  el_input_tag("tags_d", placeholder = "Please input"),
  tags$br(),
  el_input_tag("tags_s", size = "small", placeholder = "Please input")
)

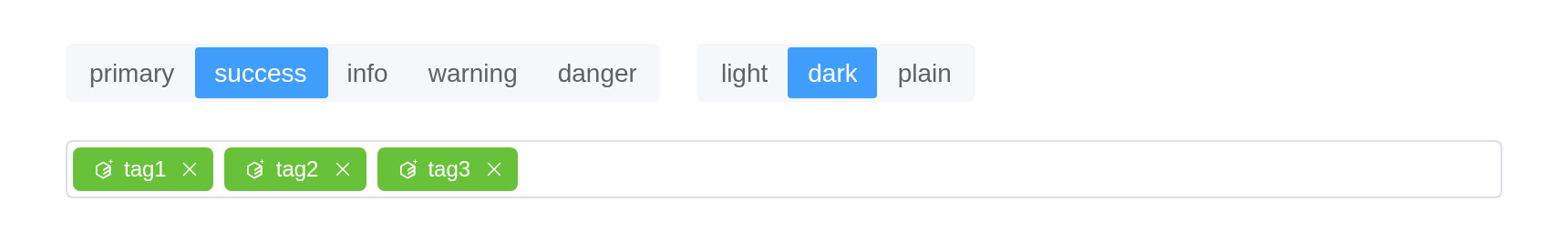

Custom Tag

You can customize the tag content by tag slot.

The segmented controls set the tags’ tag_type and tag_effect, with update_el_input_tag(); the tag slot draws each one.

ui <- el_page(
  tags$div(
    style = "display: flex; gap: 20px",
    el_segmented(
      "tags_type",
      value = "primary",
      options = c("primary", "success", "info", "warning", "danger")
    ),
    el_segmented(
      "tags_effect",
      value = "plain",
      options = c("light", "dark", "plain")
    )
  ),
  tags$br(),
  el_input_tag(
    "tags_tpl",
    value = c("tag1", "tag2", "tag3"),
    tag_type = "primary",
    tag_effect = "plain",
    placeholder = "Please input",
    slots = list(
      tag = template(
        slot = "tag",
        scope = "{ value }",
        tags$div(
          style = "display: flex; align-items: center",
          el_icon("ElementPlus", style = "margin-right: 4px"),
          tags$span("{{ value }}")
        )
      )
    )
  )
)
server <- function(input, output, session) {
  observeEvent(input$tags_type, ignoreInit = TRUE, {
    update_el_input_tag(session, "tags_tpl", tag_type = input$tags_type)
  })
  observeEvent(input$tags_effect, ignoreInit = TRUE, {
    update_el_input_tag(session, "tags_tpl", tag_effect = input$tags_effect)
  })
}
shinyApp(ui, server)

Custom Prefix and Suffix

You can customize the prefix and suffix of the InputTag by prefix and suffix slot.

el_input_tag(
  "tags_ps",
  clearable = TRUE,
  placeholder = "Please input",
  slots = list(prefix = el_icon("ElementPlus"), suffix = el_icon("Search"))
)

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element	In R	Description	Type	Accepted	Default
model-value	value; input$<id>	binding value	1string[]		—
max	max	max number tags that can be enter	2		—
tag-type	tag_type	tag type	3'' \\| 'success' \\| 'info' \\| 'warning' \\| 'danger'		info
tag-effect	tag_effect	tag effect	4'' \\| 'light' \\| 'dark' \\| 'plain'		light
effect	effect	tooltip theme, built-in theme: dark / light	5'dark' \\| 'light' / 6		light
trigger	trigger	the key to trigger input tag	7'Enter' \\| 'Space'		Enter
draggable	draggable	whether tags can be dragged	8		false
delimiter	delimiter	add a tag when a delimiter is matched	9 / 10		—
size	size	input box size	11'large' \\| 'default' \\| 'small'		—
collapse-tags	collapse_tags	whether to collapse tags to a text when multiple selecting	12		false
collapse-tags-tooltip	collapse_tags_tooltip	whether show all selected tags when mouse hover text of collapse-tags. To use this, collapse-tags must be true	13		false
save-on-blur	save_on_blur	whether to save the input value when the input loses focus	14		true
clearable	clearable	whether to show clear button	15		false
clear-icon	clear_icon	custom clear icon component	16 / 17Component		CircleClose
disabled	disabled	whether to disable input-tag	18		false
validate-event	validate_event	whether to trigger form validation	19		true
readonly	readonly	same as readonly in native input	20		false
autofocus	autofocus	same as autofocus in native input	21		false
id	id, the Shiny input’s	same as id in native input	22		—
tabindex	tabindex	same as tabindex in native input	23 / 24		—
max-collapse-tags	max_collapse_tags	the max tags number to be shown. To use this, collapse-tags must be true	25		1
maxlength	maxlength	same as maxlength in native input	26 / 27		—
minlength	minlength	same as minlength in native input	28 / 29		—
placeholder	placeholder	placeholder of input	30		—
autocomplete	autocomplete	same as autocomplete in native input	31		off
aria-label	aria_label	native aria-label attribute	32		—

Events

Element	In R	Description
change	input$<id>, the value	triggers when the modelValue change
input	input$<id>_input	triggers when the input value change
add-tag	input$<id>_add_tag	triggers when a tag is added
remove-tag	input$<id>_remove_tag	triggers when a tag is removed
drag-tag	input$<id>_drag_tag	triggers when a tag is dragged
focus	input$<id>_focus	triggers when InputTag focuses
blur	input$<id>_blur	triggers when InputTag blurs
clear	input$<id>_clear	triggers when the clear icon is clicked

Slots

Element	In R	Description
tag	slots = list(tag = )	content as tag
prefix	slots = list(prefix = )	content as InputTag prefix
suffix	slots = list(suffix = )	content as InputTag suffix

Exposes

Element	In R	Description
focus	call_el(session, id, "focus")	focus the input element
blur	call_el(session, id, "blur")	blur the input element
