Upload • shiny.element

Upload files by clicking or drag-and-drop.

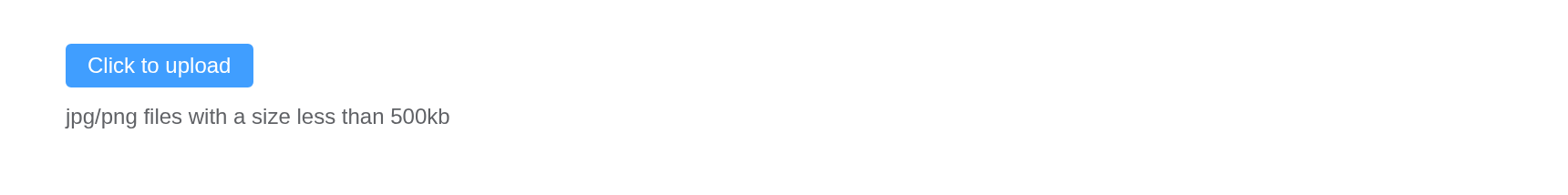

Basic Usage

Customize upload button type and text using slot. Set limit and on-exceed to limit the maximum number of uploads allowed and specify method when the limit is exceeded. Plus, you can abort removing a file in the before-remove hook.

The files go through Shiny’s own upload channel, so input$<id> is the data frame fileInput() gives – name, size, type, datapath – while Element Plus draws the list and the progress. limit caps the number of files; on_exceed hears when there are more.

ui <- el_page(
  el_upload(
    "docs",
    button_label = "Click to upload",
    multiple = TRUE,
    limit = 3,
    tip = "jpg/png files with a size less than 500kb",
    on_exceed = JS(
      "function(files, list) {",
      "  ElementPlus.ElMessage.warning('3 files at most');",
      "}"
    )
  ),
  tableOutput("files")
)

server <- function(input, output, session) {
  output$files <- renderTable(input$docs[, c("name", "size", "type")])
}

shinyApp(ui, server)

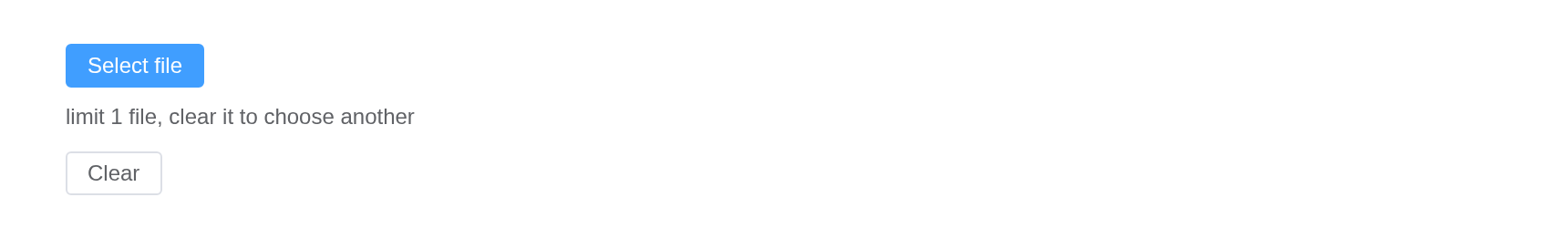

Cover Previous File

Set limit and on-exceed to automatically replace the previous file when select a new file.

With limit = 1, one file at a time: on_exceed hears the next, and the server clears the list with el_upload_clear() so a new one can come.

ui <- el_page(
  el_upload(
    "one",
    limit = 1,
    auto_upload = FALSE,
    button_label = "Select file",
    tip = "limit 1 file, clear it to choose another",
    on_exceed = JS(
      "function() { ElementPlus.ElMessage.warning('Clear the file first'); }"
    )
  ),
  el_button("clear", "Clear", size = "small")
)

server <- function(input, output, session) {
  observeEvent(input$clear, el_upload_clear(id = "one"))
}

shinyApp(ui, server)

User Avatar

Use before-upload hook to limit the upload file format and size.

One picture, no list: the slot draws the box, a JS() hook checks the file before it goes.

tagList(
  tags$style(
    ".avatar-uploader .el-upload { border: 1px dashed var(--el-border-color);",
    " border-radius: 6px; width: 178px; height: 178px; display: flex;",
    " align-items: center; justify-content: center; font-size: 28px; color: #8c939d; }"
  ),
  tags$div(
    class = "avatar-uploader",
    el_upload(
      "avatar",
      show_file_list = FALSE,
      accept = "image/*",
      before_upload = JS(
        "function(file) {",
        "  if (file.size / 1024 / 1024 > 2) {",
        "    ElementPlus.ElMessage.error('Avatar picture size can not exceed 2MB!');",
        "    return false;",
        "  }",
        "  return true;",
        "}"
      ),
      slots = list(default = el_icon("Plus"))
    )
  )
)

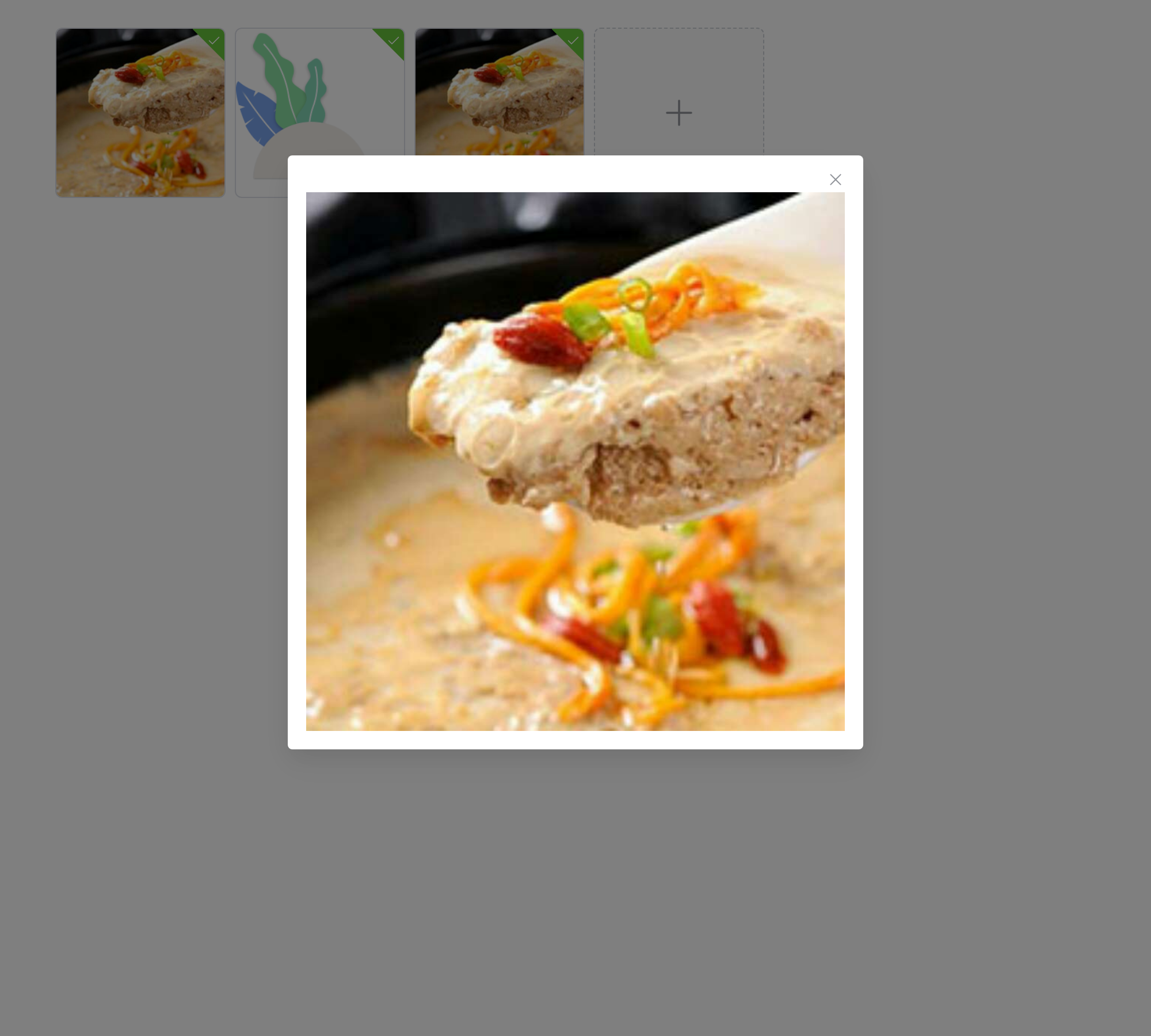

Photo Wall

Use list-type to change the fileList style.

list_type = "picture-card": each file a card with its thumbnail. A card’s preview button reports the file through on_preview, and the server shows it in a dialog.

food <- "https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg"
plant <- "https://element-plus.org/images/plant-1.png"
ui <- el_page(
  el_upload(
    "photos",
    list_type = "picture-card",
    accept = "image/*",
    multiple = TRUE,
    file_list = list(
      list(name = "food.jpeg", url = food),
      list(name = "plant-1.png", url = plant),
      list(name = "food.jpeg", url = food)
    ),
    on_preview = JS(
      "function(file) { Shiny.setInputValue('photos_preview', file.url, {priority: 'event'}); }"
    ),
    slots = list(default = el_icon("Plus"))
  ),
  el_dialog("photo_dialog", content = uiOutput("photo_shown"))
)
server <- function(input, output, session) {
  output$photo_shown <- renderUI({
    req(input$photos_preview)
    tags$img(
      style = "width: 100%",
      src = input$photos_preview,
      alt = "Preview Image"
    )
  })
  observeEvent(input$photos_preview, {
    update_el_dialog(session, "photo_dialog", visible = TRUE)
  })
}
shinyApp(ui, server)

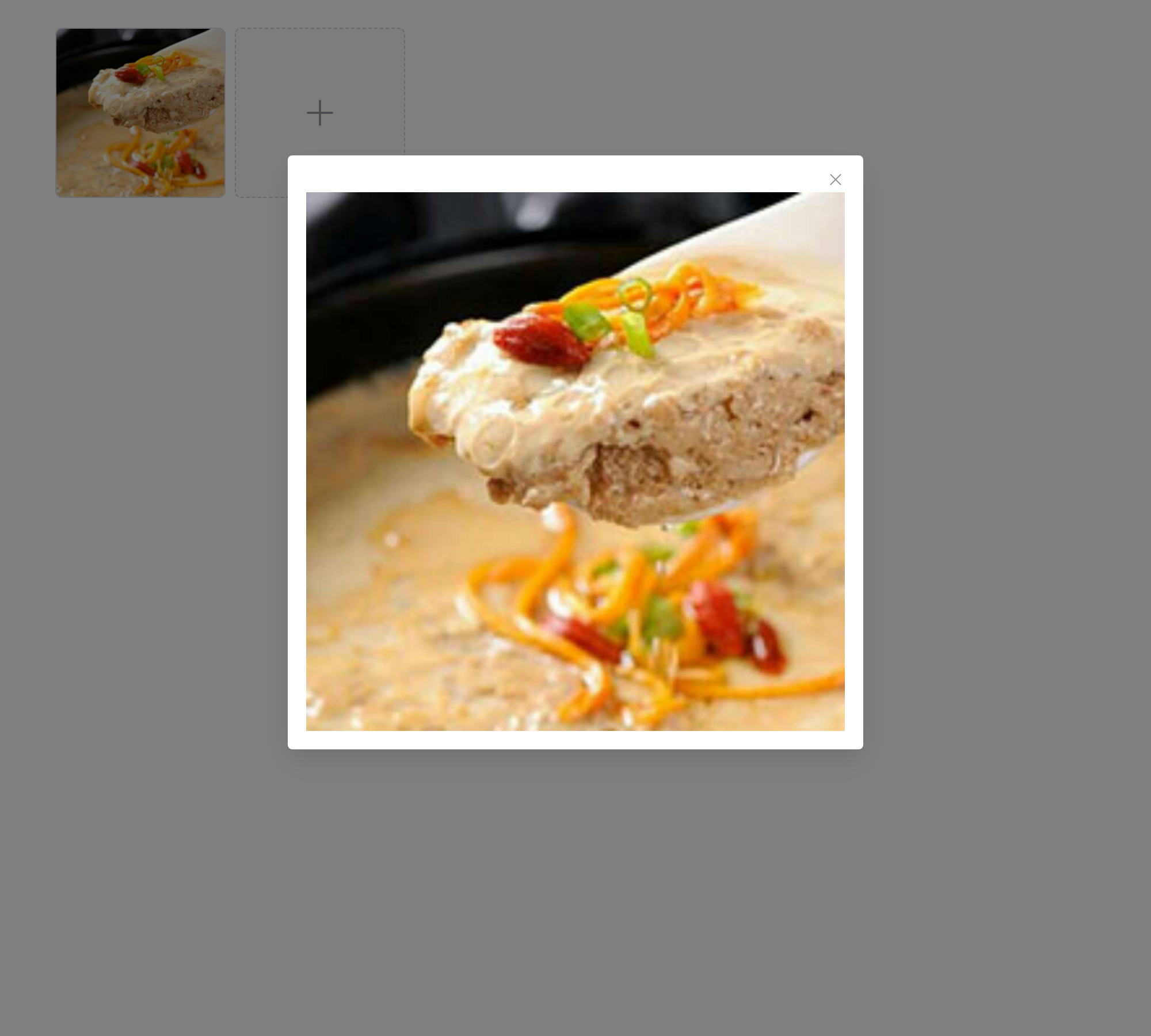

Custom Thumbnail

Use scoped-slot to change default thumbnail template.

The file slot, scoped with file, draws each card, with buttons of its own: zoom reports the file and the server shows it in a dialog.

ui <- el_page(
  el_upload(
    "thumbs",
    list_type = "picture-card",
    auto_upload = FALSE,
    accept = "image/*",
    file_list = list(list(
      name = "food.jpeg",
      url = "https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg"
    )),
    slots = list(
      default = el_icon("Plus"),
      file = template(
        slot = "file",
        scope = "{ file }",
        tags$div(
          tags$img(
            class = "el-upload-list__item-thumbnail",
            `:src` = "file.url",
            alt = ""
          ),
          tags$span(
            class = "el-upload-list__item-actions",
            tags$span(
              class = "el-upload-list__item-preview",
              `@click` = "$setInput('thumbs_preview', file.url)",
              el_icon("ZoomIn")
            ),
            tags$span(
              class = "el-upload-list__item-delete",
              `@click` = "$setInput('thumbs_download', file.name)",
              el_icon("Download")
            ),
            tags$span(
              class = "el-upload-list__item-delete",
              `@click` = "$setInput('thumbs_remove', file.name)",
              el_icon("Delete")
            )
          )
        )
      )
    )
  ),
  el_dialog("thumb_dialog", content = uiOutput("thumb_shown"))
)
server <- function(input, output, session) {
  output$thumb_shown <- renderUI({
    req(input$thumbs_preview)
    tags$img(
      style = "width: 100%",
      src = input$thumbs_preview,
      alt = "Preview Image"
    )
  })
  observeEvent(input$thumbs_preview, {
    update_el_dialog(session, "thumb_dialog", visible = TRUE)
  })
}
shinyApp(ui, server)

File List with Thumbnail

el_upload(
  "pics",
  list_type = "picture",
  button_label = "Click to upload",
  tip = "jpg/png files with a size less than 500kb",
  accept = "image/*",
  file_list = list(list(
    name = "food.jpeg",
    url = "https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg"
  ))
)

File List Control

Use on-change hook function to control upload file list.

on_change sees the list change; keeping only the last three files is a line of JavaScript.

el_upload(
  "latest",
  button_label = "Click to upload",
  tip = "jpg/png files with a size less than 500kb",
  on_change = JS(
    "function(file, fileList) { if (fileList.length > 3) fileList.splice(0, fileList.length - 3); }"
  )
)

Drag to Upload

You can drag your file to a certain area to upload it.

el_upload(
  "dropped",
  drag = TRUE,
  multiple = TRUE,
  button_label = "Drop file here or click to upload",
  tip = "jpg/png files with a size less than 500kb"
)

Upload Directory

Enable folder upload via the directory prop.

After enabling it, only folders can be selected, and after selecting a folder, the files within the folder will be flattened.

directory = TRUE picks a folder, and uploads every file in it; here dropped or chosen in the drag area.

el_upload(
  "folder",
  drag = TRUE,
  directory = TRUE,
  multiple = TRUE,
  slots = list(
    default = tagList(
      el_icon("UploadFilled", class = "el-icon--upload"),
      tags$div(
        class = "el-upload__text",
        "Drop directory here or ",
        tags$em("click to upload")
      )
    )
  )
)

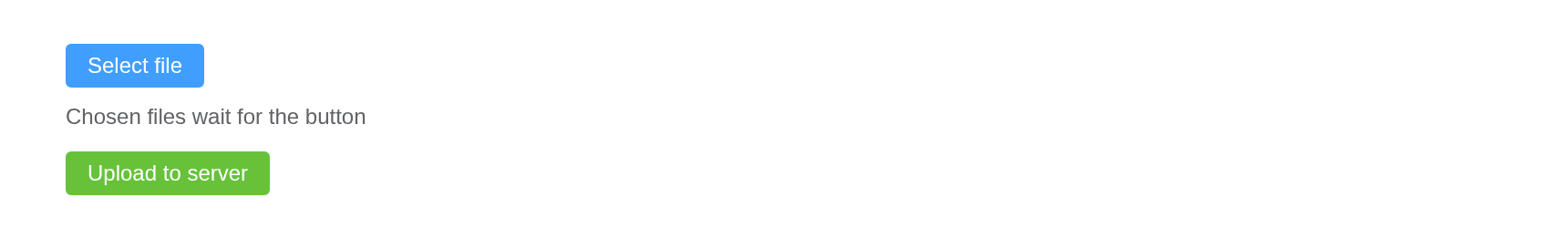

Manual Upload

auto_upload = FALSE keeps the files until submit() sends them – from the server, with call_el().

ui <- el_page(
  el_upload(
    "queued",
    auto_upload = FALSE,
    multiple = TRUE,
    button_label = "Select file",
    tip = "Chosen files wait for the button"
  ),
  el_button("send", "Upload to server", type = "success", size = "small"),
  tableOutput("arrived")
)

server <- function(input, output, session) {
  observeEvent(input$send, call_el(id = "queued", method = "submit"))
  output$arrived <- renderTable(input$queued[, c("name", "size")])
}

shinyApp(ui, server)

API

Element Plus’s tables, and beside each entry where it is in R.

Attributes

Element	In R	Description	Type	Default
`action`	`action`	request URL.	¹	#
`headers`	`headers`	request headers.	²`Headers \\\| Record<string, any>`	—
`multiple`	`multiple`	whether uploading multiple files is permitted.	³	false
`data`	`extra_data`	additions options of request. support `Awaitable` data and `Function` since v2.3.13.	⁴`Record<string, any> \\\| Awaitable<Record<string, any>>` / ⁵`(rawFile: UploadRawFile) => Awaitable<Record<string, any>>`	{}
`with-credentials`	`with_credentials`	whether cookies are sent.	⁶	false
`show-file-list`	`show_file_list`	whether to show the uploaded file list.	⁷	true
`drag`	`drag`	whether to activate drag and drop mode.	⁸	false
`accept`	`accept`	accepted file types, will not work when `thumbnail-mode === true`.	⁹	’’
`crossorigin`	`crossorigin`	native attribute crossorigin.	¹⁰`'' \\\| 'anonymous' \\\| 'use-credentials'`	—
`on-preview`	`on_preview`	hook function when clicking the uploaded files.	¹¹`(uploadFile: UploadFile) => void`	—
`on-remove`	`on_remove`	hook function when files are removed.	¹²`(uploadFile: UploadFile, uploadFiles: UploadFiles) => void`	—
`on-success`	`input$<id>`	hook function when uploaded successfully.	¹³`(response: any, uploadFile: UploadFile, uploadFiles: UploadFiles) => void`	—
`on-error`	`input$<id>_error`	hook function when some errors occurs.	¹⁴`(error: Error, uploadFile: UploadFile, uploadFiles: UploadFiles) => void`	—
`on-progress`	`on_progress`	hook function when some progress occurs.	¹⁵`(evt: UploadProgressEvent, uploadFile: UploadFile, uploadFiles: UploadFiles) => void`	—
`on-change`	`on_change`	hook function when select file or upload file success or upload file fail.	¹⁶`(uploadFile: UploadFile, uploadFiles: UploadFiles) => void`	—
`on-exceed`	`on_exceed`	hook function when limit is exceeded.	¹⁷`(files: File[], uploadFiles: UploadUserFile[]) => void`	—
`before-upload`	`before_upload`	hook function before uploading with the file to be uploaded as its parameter. If `false` is returned or a `Promise` is returned and then is rejected, uploading will be aborted.	¹⁸`(rawFile: UploadRawFile) => Awaitable<void \\\| undefined \\\| null \\\| boolean \\\| File \\\| Blob>`	—
`before-remove`	`before_remove`	hook function before removing a file with the file and file list as its parameters. If `false` is returned or a `Promise` is returned and then is rejected, removing will be aborted.	¹⁹`(uploadFile: UploadFile, uploadFiles: UploadFiles) => Awaitable<boolean>`	—
`file-list`	`file_list`	default uploaded files.	²⁰`UploadUserFile[]`	[]
`list-type`	`list_type`	type of file list.	²¹`'text' \\\| 'picture' \\\| 'picture-card'`	text
`auto-upload`	`auto_upload`	whether to auto upload file.	²²	true
`http-request`	`(the Shiny upload)`	override default xhr behavior, allowing you to implement your own upload-file’s request.	²³`(options: UploadRequestOptions) => XMLHttpRequest \\\| Promise<unknown>`	ajaxUpload see
`disabled`	`disabled`	whether to disable upload.	²⁴	false
`limit`	`limit`	maximum number of uploads allowed.	²⁵	—
`directory`	`directory`	whether to support uploading directory. After enabling it, only folders can be selected, and after selecting a folder, the files within the folder will be flattened.	²⁶	false

Slots

Element	In R	Description
`default`	default content	customize default content.
`trigger`	`slots = list(trigger = )`	content which triggers file dialog.
`tip`	`slots = list(tip = )`	content of tips.
`file`	`slots = list(file = )`	content of thumbnail template.

Exposes

Element	In R	Description
`abort`	`call_el(session, id, "abort")`	cancel upload request. When a `file` is specified, abort the corresponding pending upload; when no file is specified, abort all pending uploads.
`submit`	`call_el(session, id, "submit")`	upload the file list manually.
`clearFiles`	`call_el(session, id, "clearFiles")`	clear the file list (this method is not supported in the `before-upload` hook).
`handleStart`	`call_el(session, id, "handleStart")`	select the file manually.
`handleRemove`	`call_el(session, id, "handleRemove")`	remove the file manually. `file` and `rawFile` has been merged. `rawFile` will be removed in `v2.2.0`.
